Single Guitar & Bass
Single Guitar & Bass
Standard Features
Standard Features

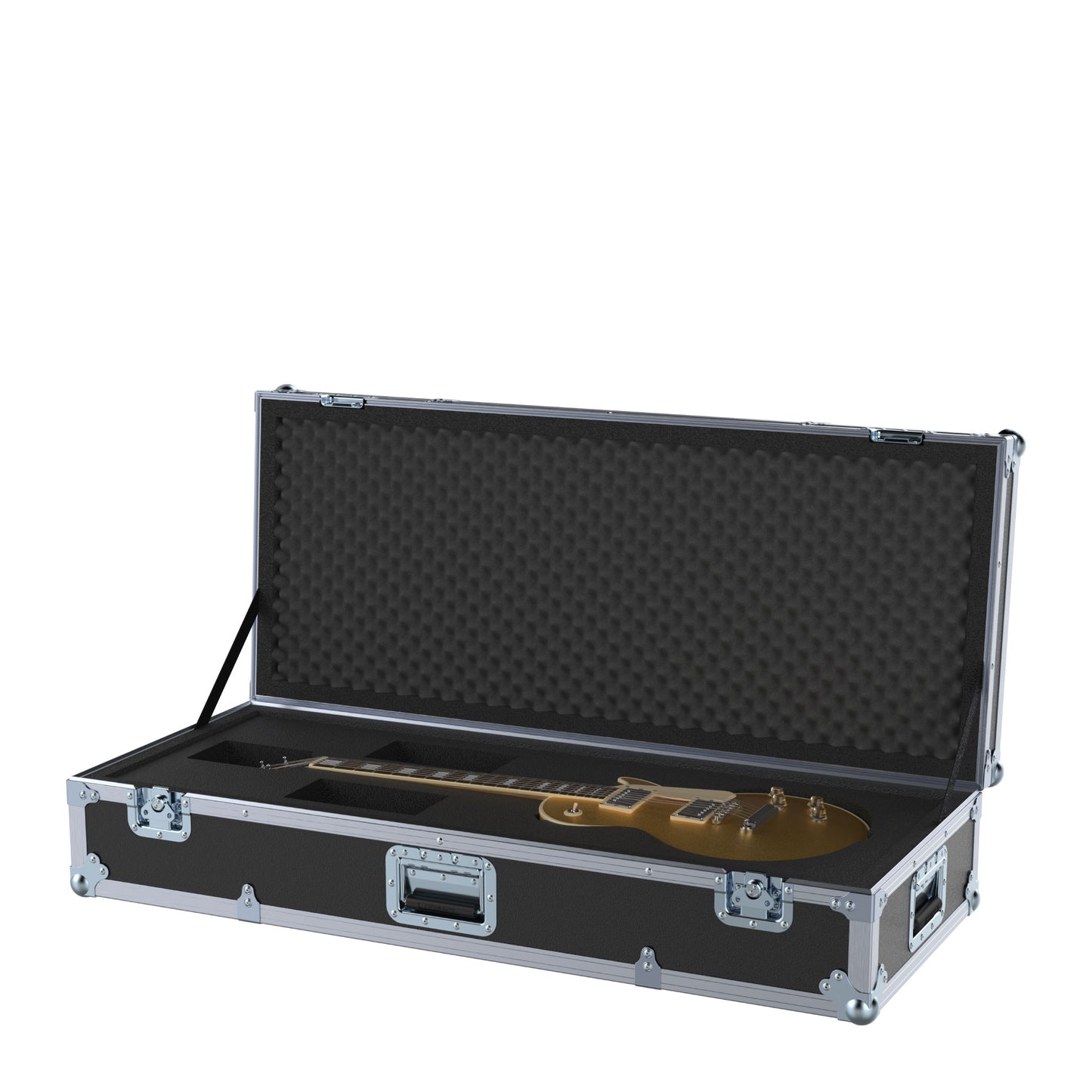

Design: This case is designed specifically for your guitar/bass. The foam is CNC'd to the exact shape and contours of the guitar/bass.
Handles: Recessed handles are used on all of our cases.
Latches: Recessed latches are used on all of our cases.
Corners: Ball corners are used on these cases in order to take the brunt of the abuse and protect the actual case.
Foam: Black polyethylene and grey polyurethane foam are used throughout the case.
Case Construction
Case Construction
Material: 1/4" Flight Panel. This polypropylene material is lighter and stronger than its counterpart birch plywood.
Extrusions: Double angle extrusion is used to join the panels of the case together. It has a channel that the Flight Panel lives in. This is superior to single angle extrusion which is simply a piece of right angle aluminum that covers the corner. Double angle extrusion makes for a better, stronger and more durable case. Tongue and groove extrusion is used around the edge of the case where the lid meets the body.
Rivets: All of the rivets are backed by steel washers. Without washers, the rivets will eventually loosen and the case can fall apart.
Welding: The tongue and groove extrusions are welded at key joints in order to significantly strengthen the case. This helps to keep lids closing easily despite years of abuse on the road.
CNC / CAD: Every case starts off life as a detailed CAD model before it hits the manufacturing floor. Panels are precisely machined using state of the art CNC technology affording us the ability to consistently provide uniformity and repeatability. Aluminum extrusion lengths are calculated using CAD modeling systems to ensure a proper fit and are cut using digital technology.
Additional Options
Additional Options
- Recessed label dish (perfect for dry-erase PAL labels).
- Corner casters.
