FIT Fly Rack

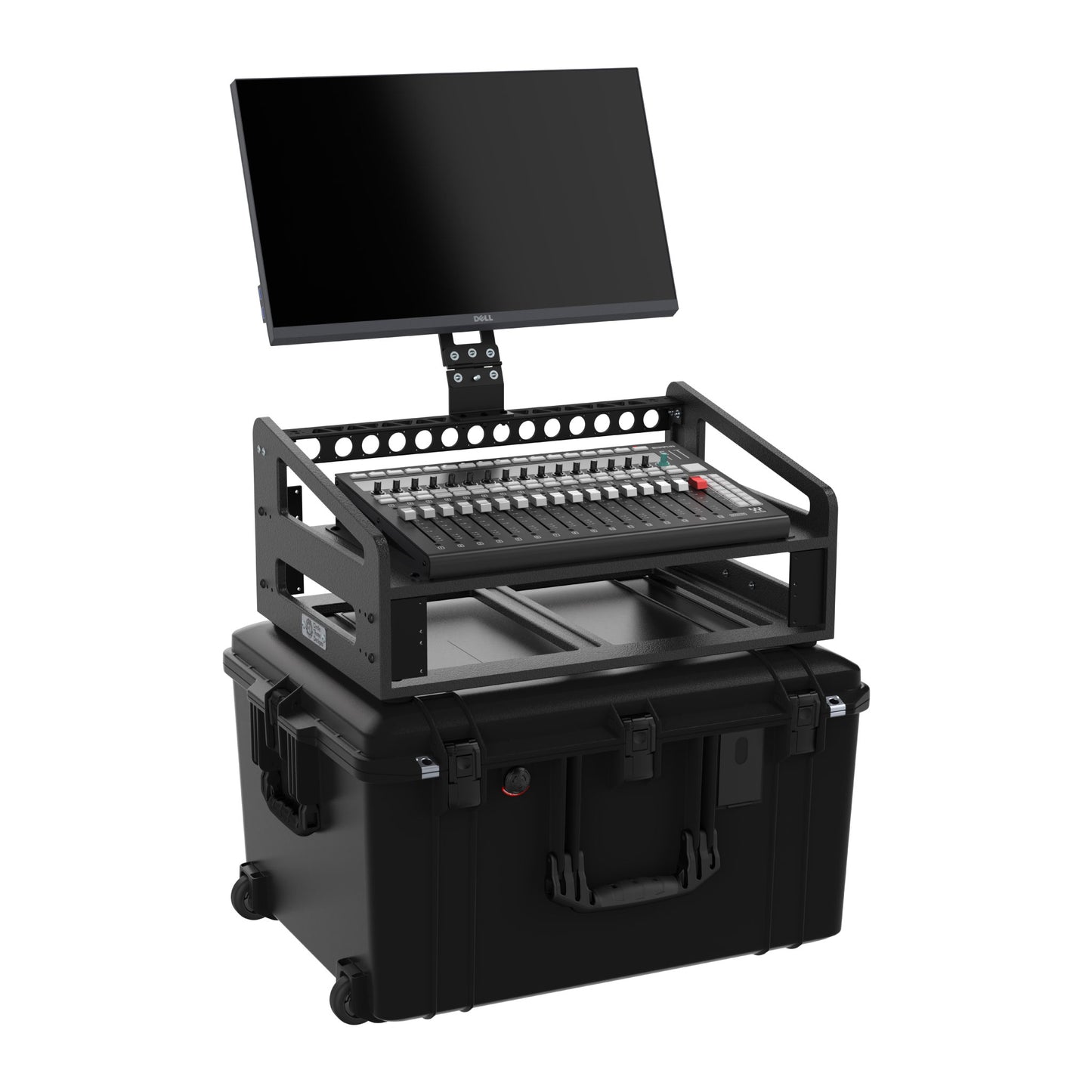

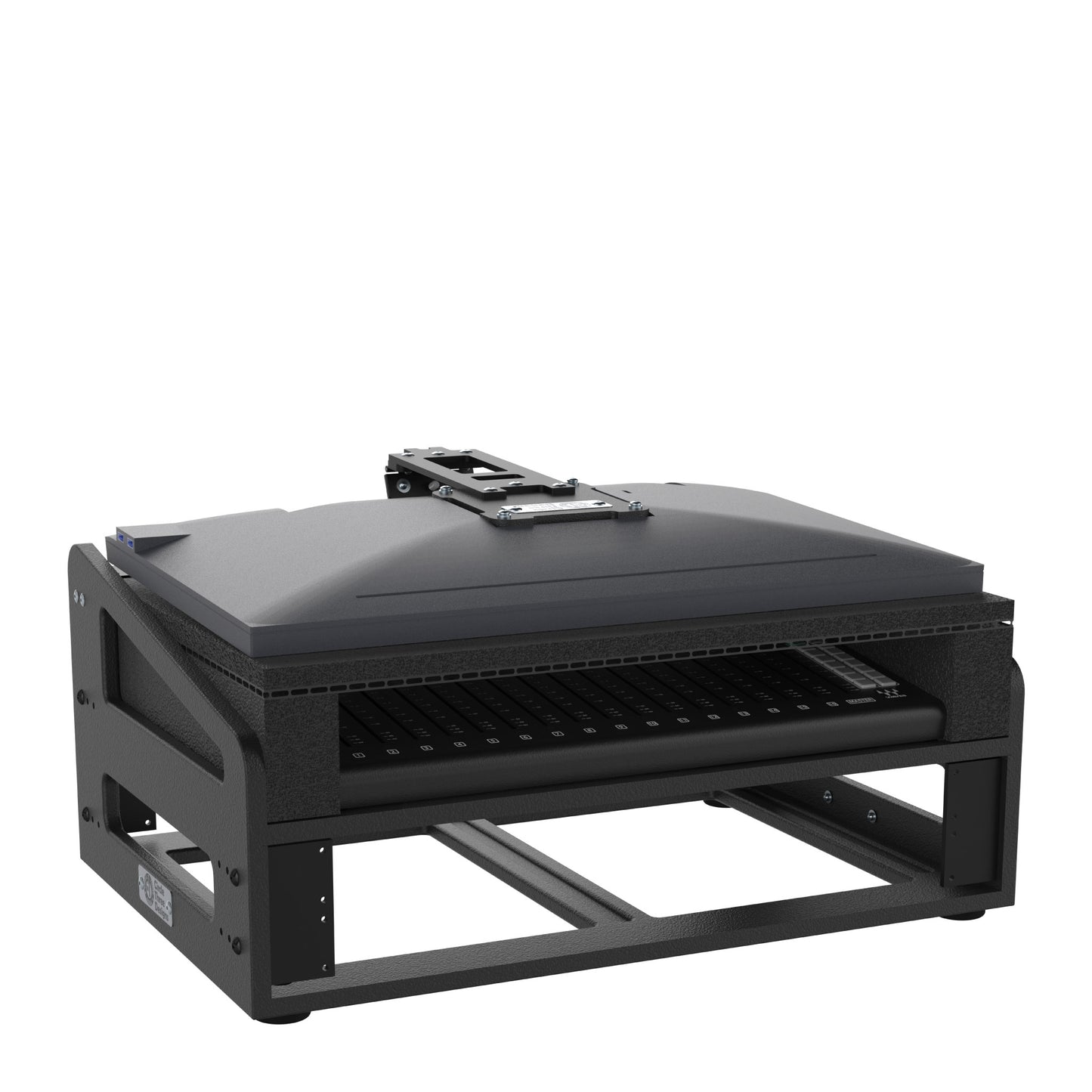

• The FIT Fly Rack is designed to hold up to the rigors of flying. This system folds up to travel in the Pelican Air 1637.
• Designed for one Dell P2424HT 24” touch screen monitors and the Waves FIT.
• 3RU (front and rear aluminum rack rails) below the monitors. These rack rails are adjustable (front to back) to accommodate a variety of different rack gear. They are tapped to #10-32 allowing for standard rack screws.
• Rack body depth: 15.625”.

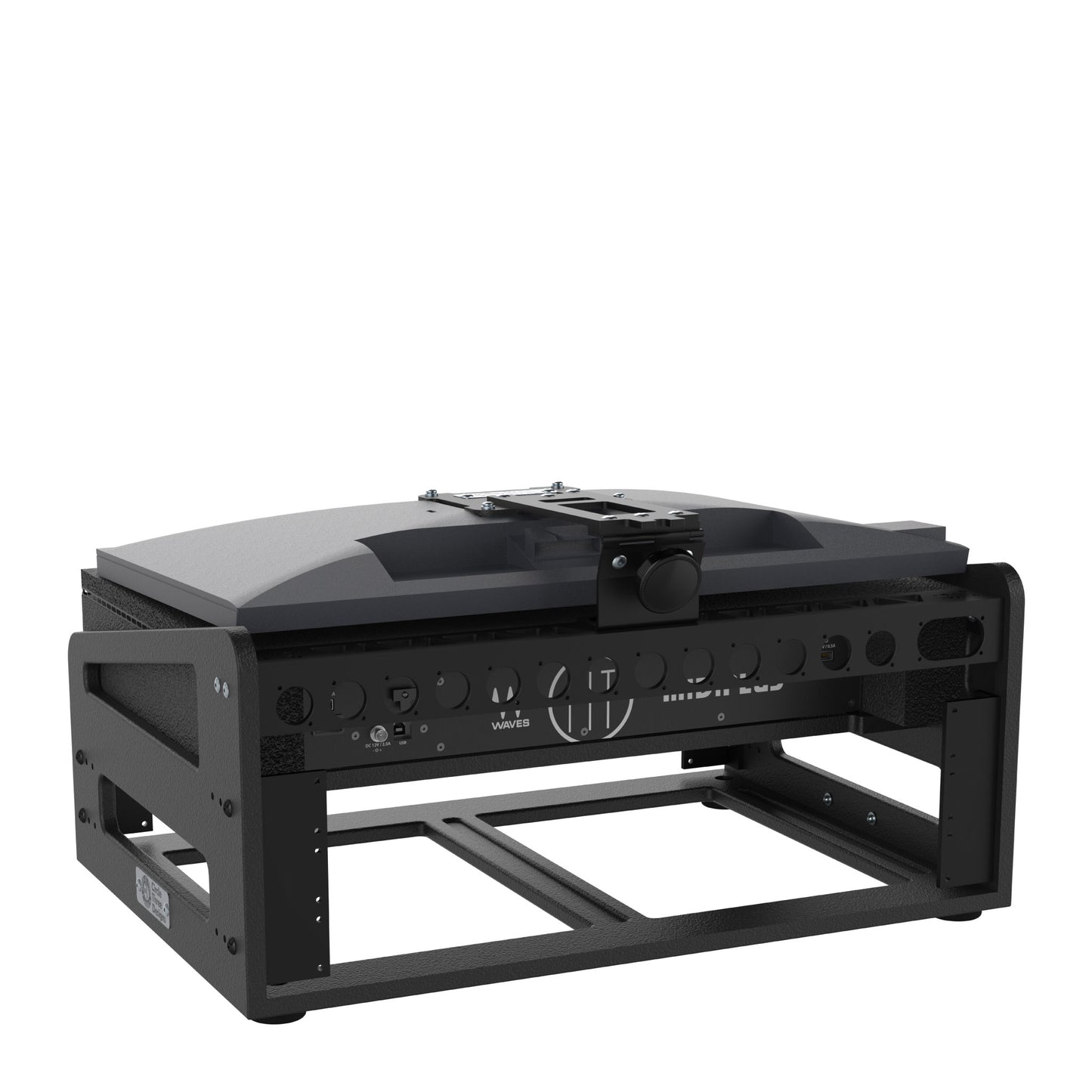

• 13 Neutrik D punch-outs on the rear panel with tapped #4-40 holes.
• 1 Neutrik powerCON TRUE1 punch-out with tapped #4-40 holes. This is designed for the NAC3PX-TOP.
• Two 3/8”-16 and three 1/4”-20 tapped holes with the ability to accept “ARRI-style” locating pins. Use these with magic arms to attach additional monitors and accessories.

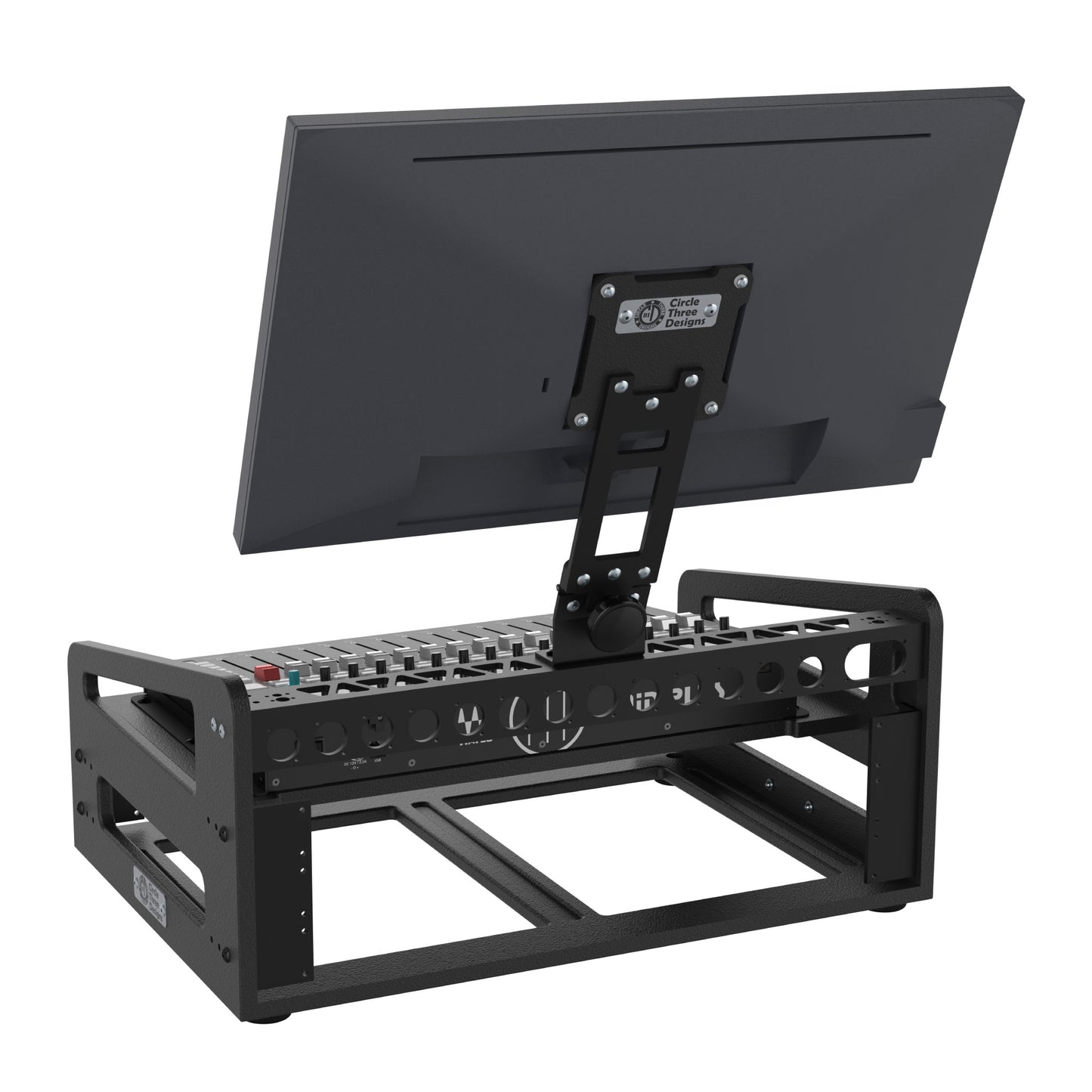

• Aluminum vertical monitor mount locks in two positions (108 degrees & 120 degrees). Remove this monitor mount to access additional 3/8”-16 and 1/4”-20 holes to attach other monitor brackets.
• Rack weight (empty): 8.3 pounds.
• Rack weight with Waves FIT: 17.5 pounds.
• Pelican Air 1637 weight (with foam): 18.7 pounds.
