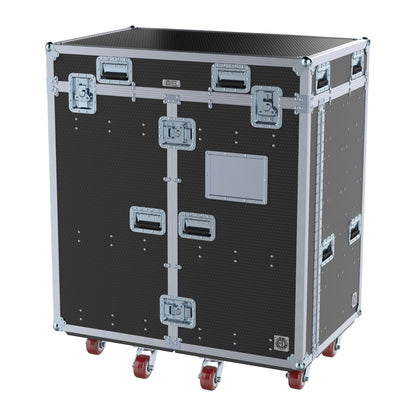

System Tech Workstation - Double Wide 10 Drawer

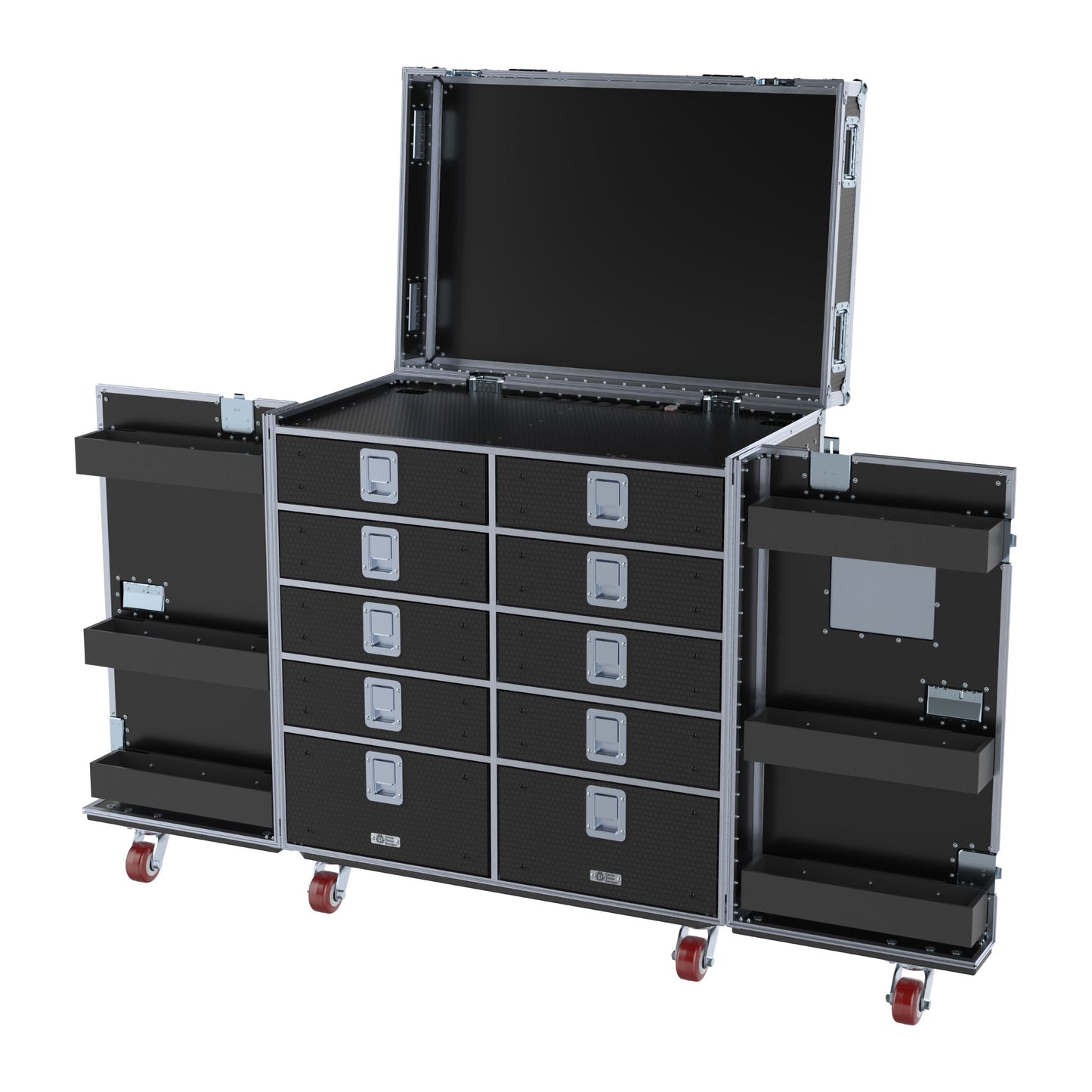

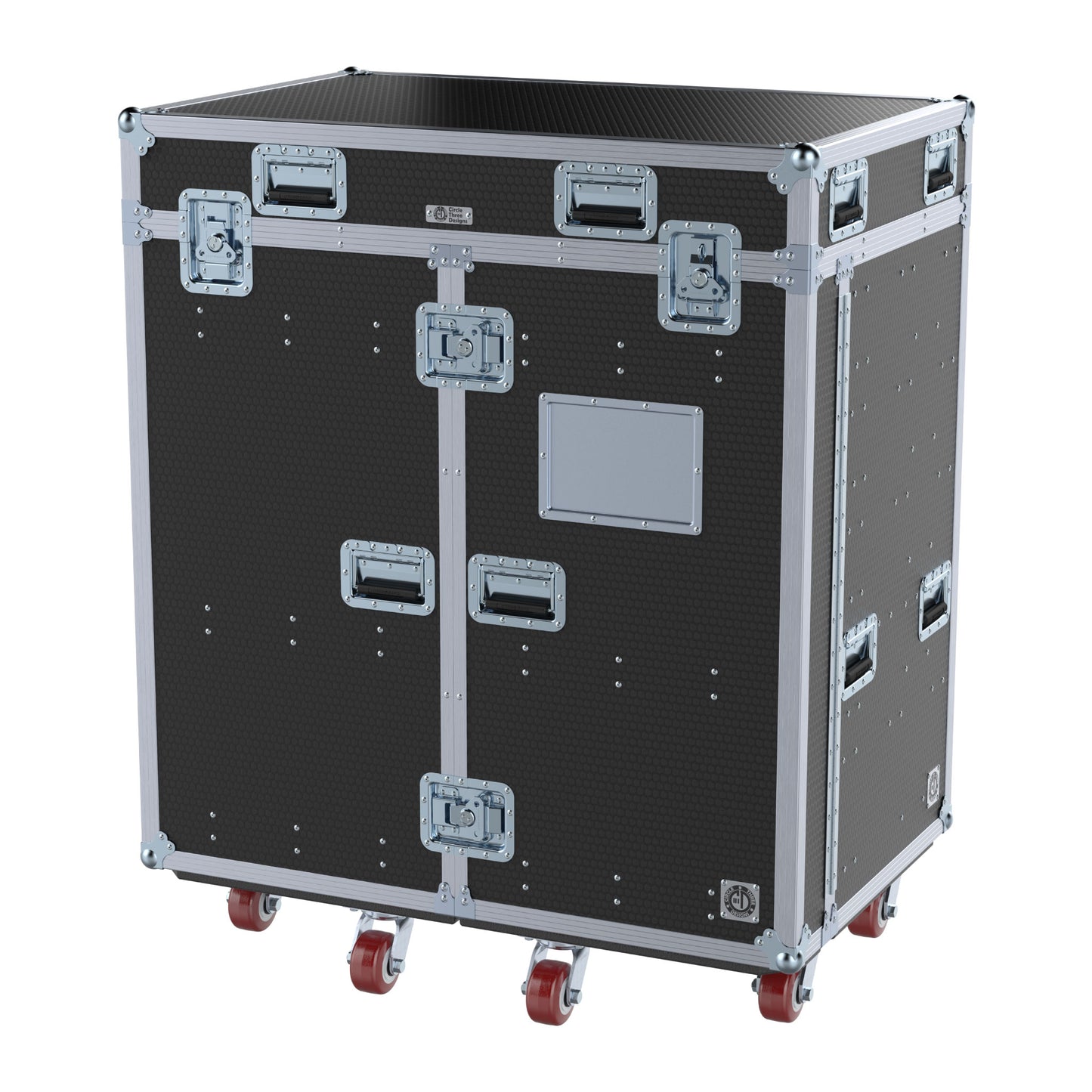

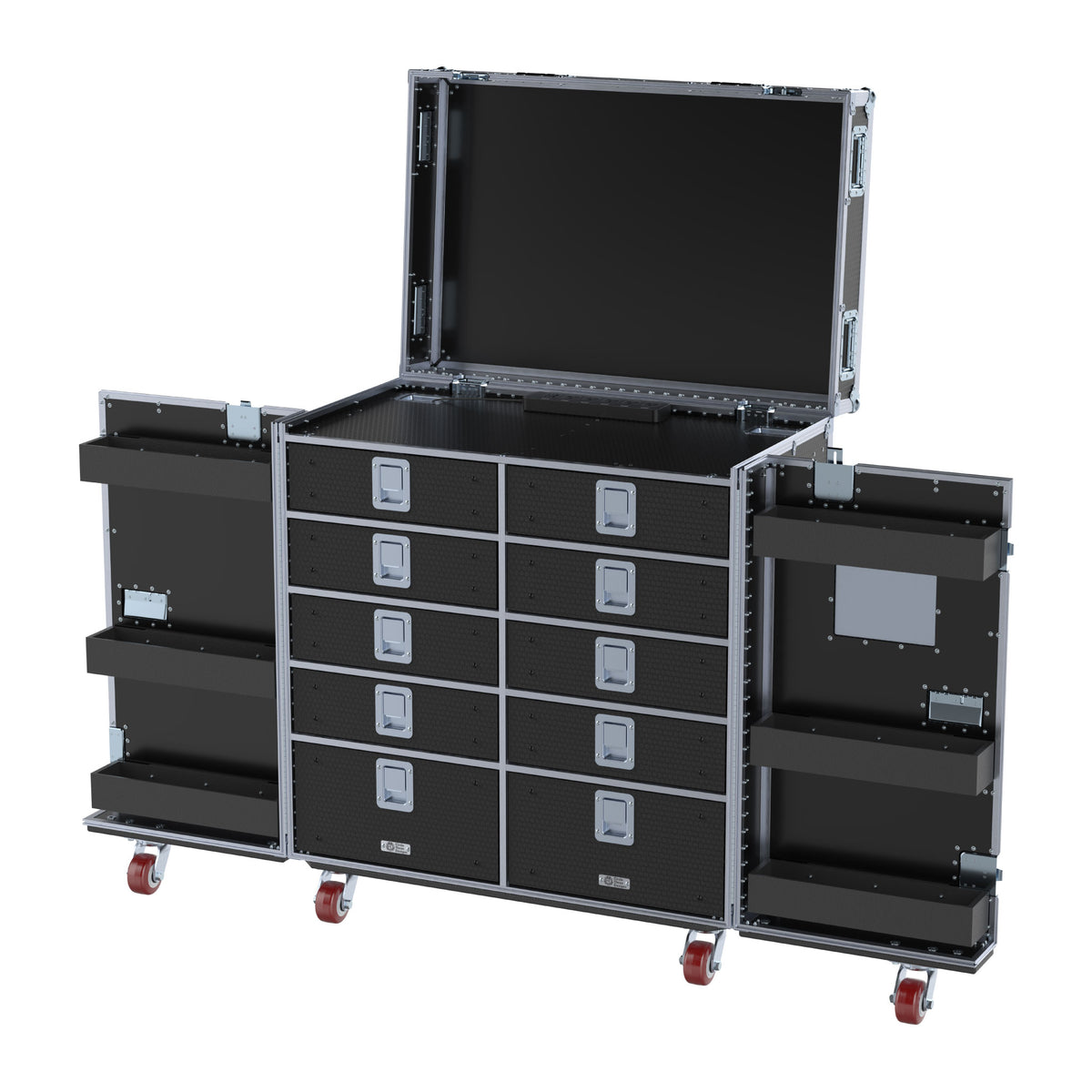

Design: Flip-top lid with a split-hinged front lid with cubbies.
Dimensions: Designed with "truck pack friendly" dimensions. These cases are designed with a 45" x 30" footprint. This case requires 77.5" of space in order to flip open the top lid. This is an important dimension to consider if the case is being used underneath a stage.
Handles: 14 recessed handles.
Latches: 4 recessed latches (one pad-lockable).
Label Dish: 1 recessed label dish (perfect for dry-erase PAL labels).
Corners: Ball corners are used on these cases in order to take the brunt of the abuse and protect the actual case.
Casters: Six extra heavy duty 4" casters (non-locking) each rated at 750 pounds. All cases come with a full length 3/4" Baltic Birch caster pallet.

Material: 1/2" Finnish Birch plywood with black phenolic resin. This 100% Finnish Birch plywood is made specifically to our specifications. The exterior phenolic resin has a “circle grip” pattern compared to the typical “haircell” pattern found on ABS. Unlike ABS, the phenolic resin will never delaminate.
Extrusions: Double angle extrusion is used to join the panels of the case together. It has a channel that the Finnish Birch plywood lives in. This is superior to single angle extrusion which is simply a piece of right angle aluminum that covers the corner. Double angle extrusion makes for a better, stronger and more durable case. Tongue and groove extrusion is used around the edge of the case where the lid meets the body.
Rivets: All of the rivets are backed by steel washers. Without washers, the rivets will eventually loosen and the case can fall apart.
Welding: The tongue and groove extrusions are welded at key joints in order to significantly strengthen the case. This helps to keep lids closing easily despite years of abuse on the road.
CNC / CAD: Every case starts off life as a detailed CAD model before it hits the manufacturing floor. Panels are precisely machined using state of the art CNC technology affording us the ability to consistently provide uniformity and repeatability. Aluminum extrusion lengths are calculated using CAD modeling systems to ensure a proper fit and are cut using digital technology.

Drawers: Drawers are made out of 1/2" Baltic Birch plywood.
Handles: Slam latches are used as handles to prevent the drawers from inadvertently opening.
Slides: Drawer slides are rated at 200 pounds.
Dividers: Dividers are made out of 1/2" Finnish Birch plywood and capped off with aluminum U channel. Dividers between each drawer strengthen the case by making it more rigid.

Flip-Top Lid: Options below for additional accessories.
Surface: The removable Baltic Birch plywood work surface is work surface is 46.5" high.

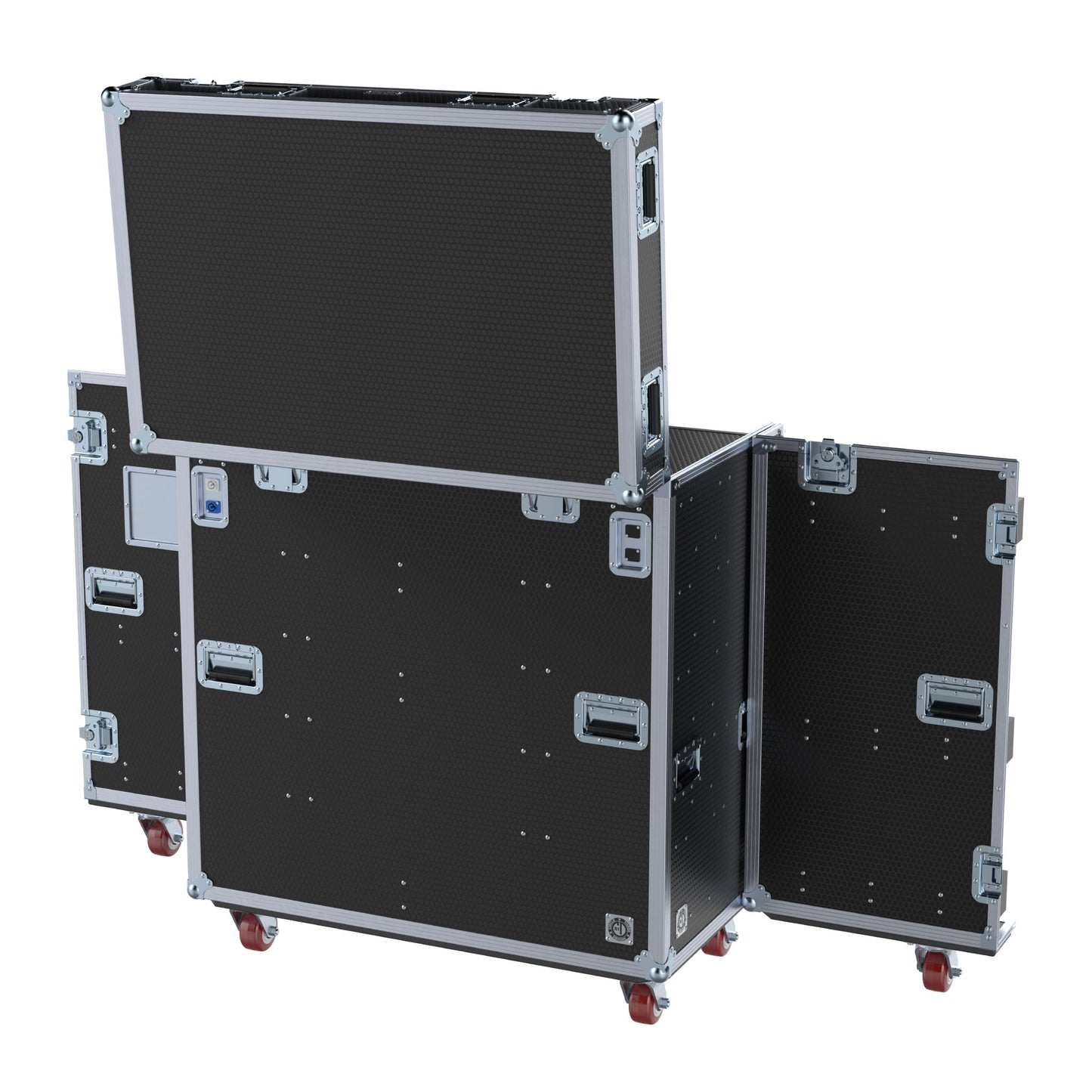

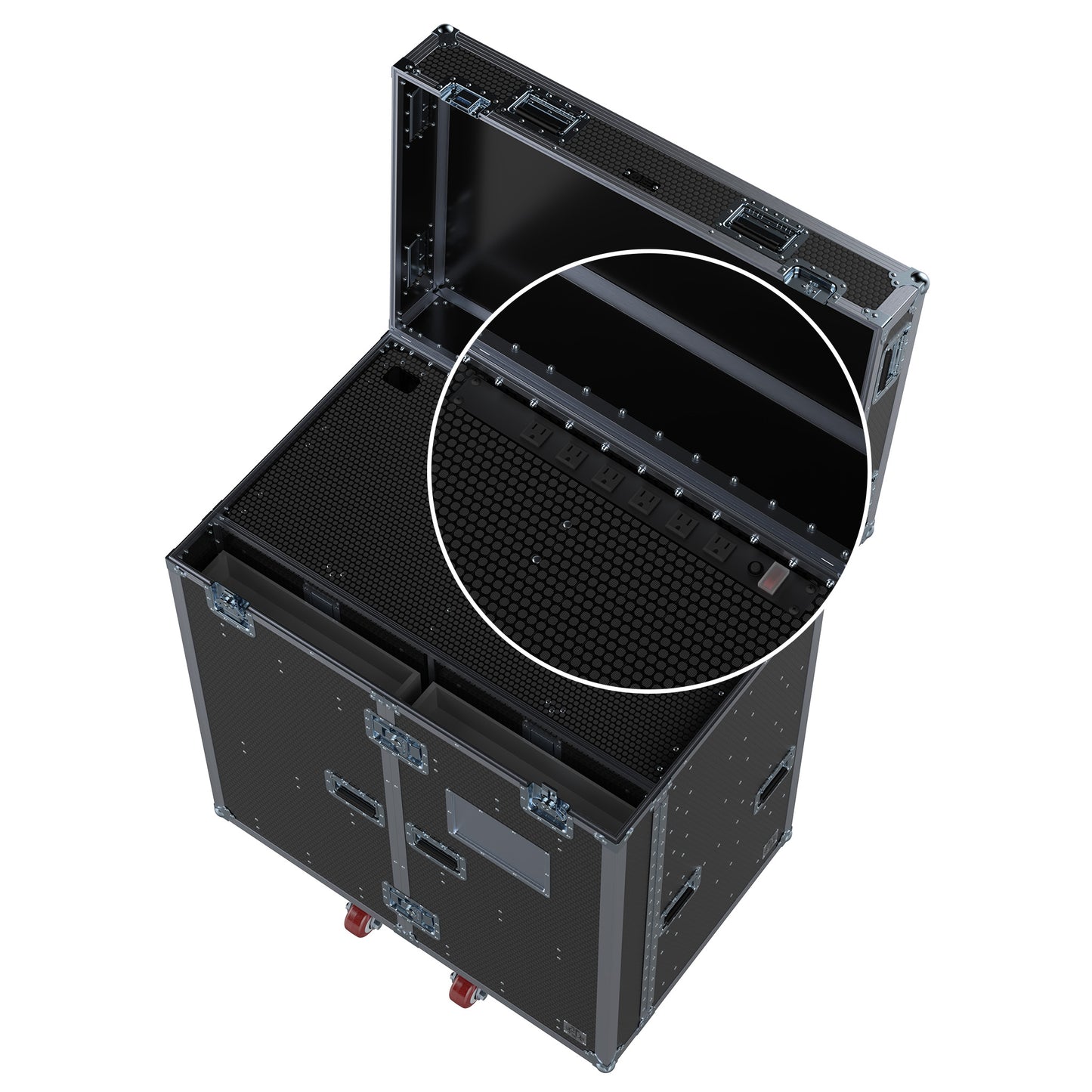

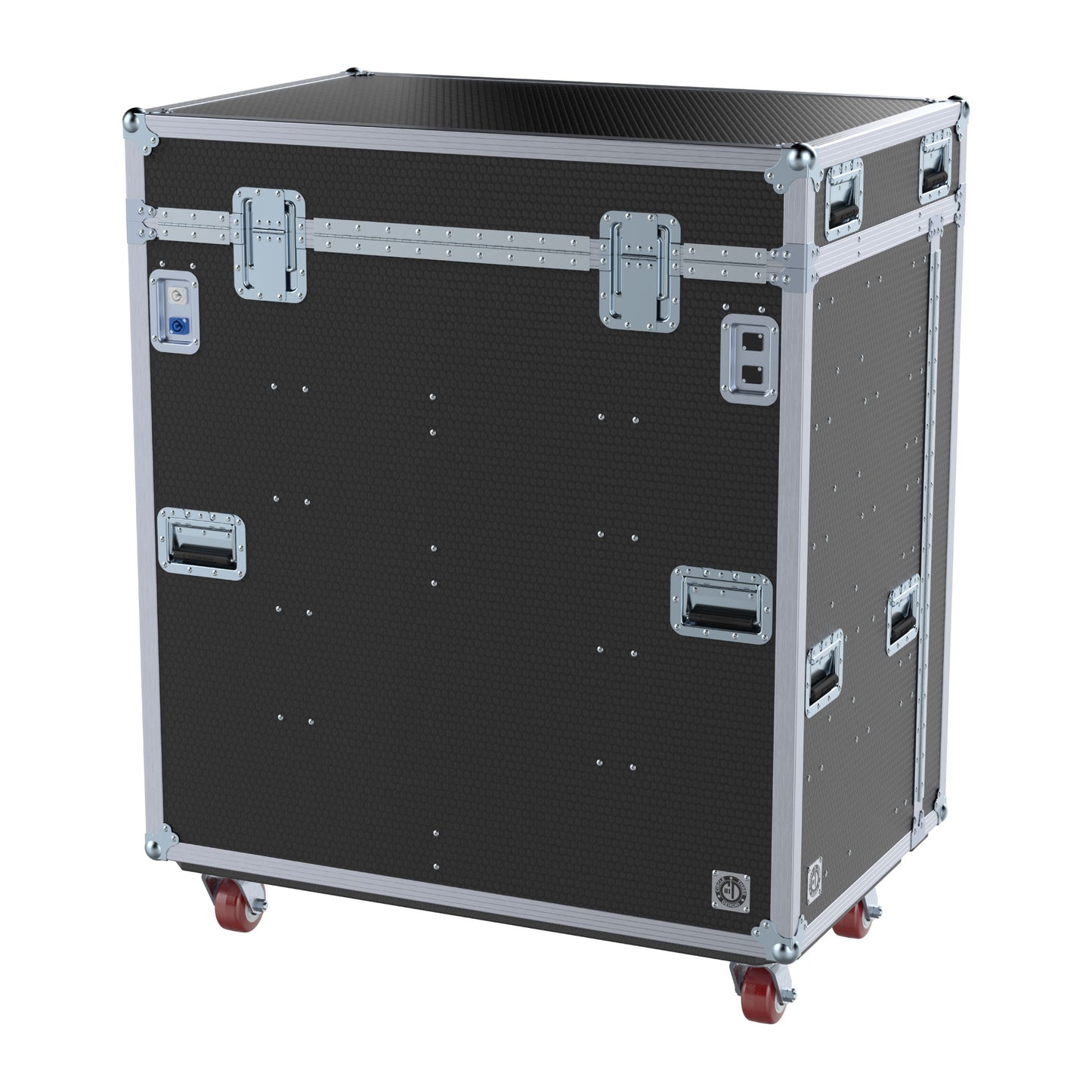

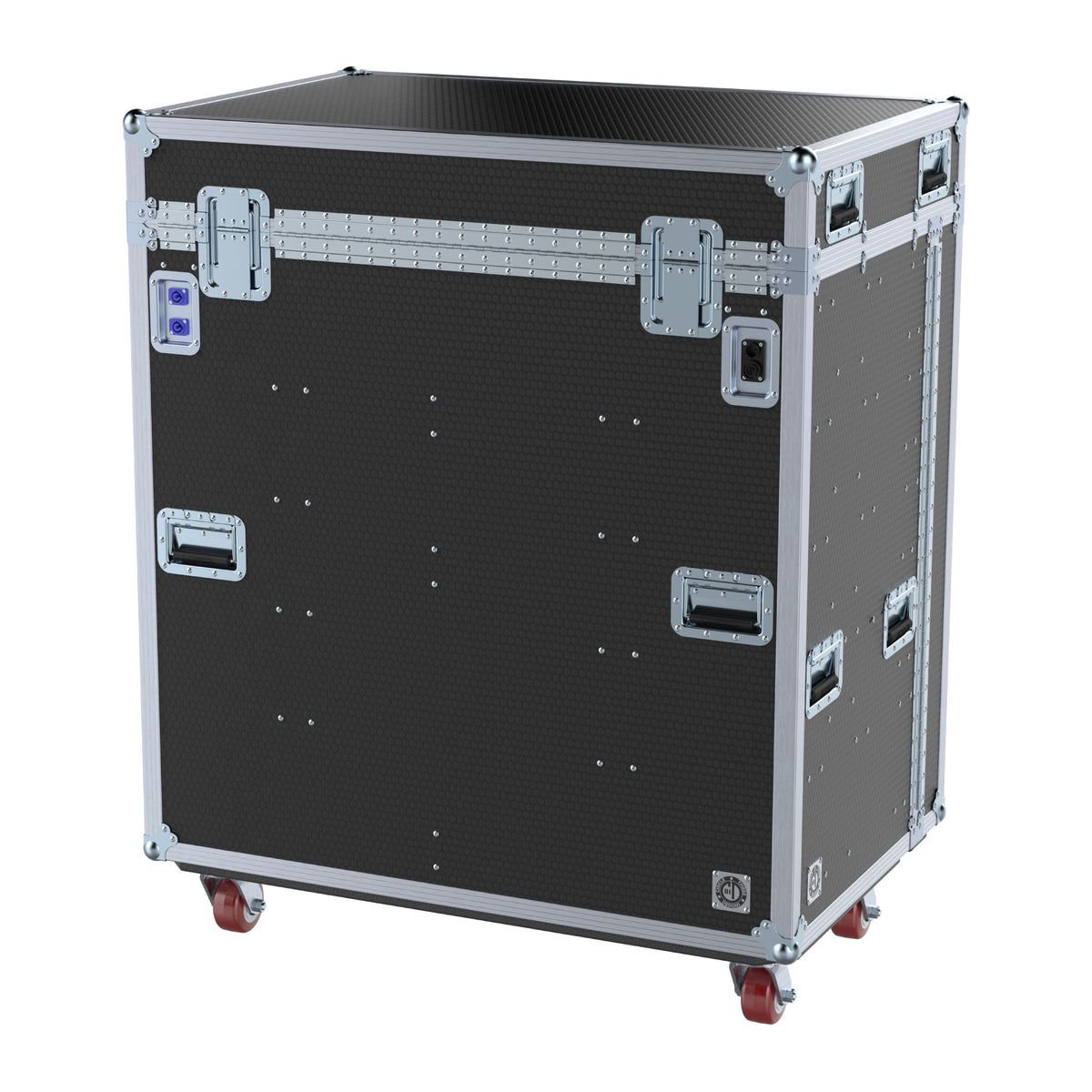

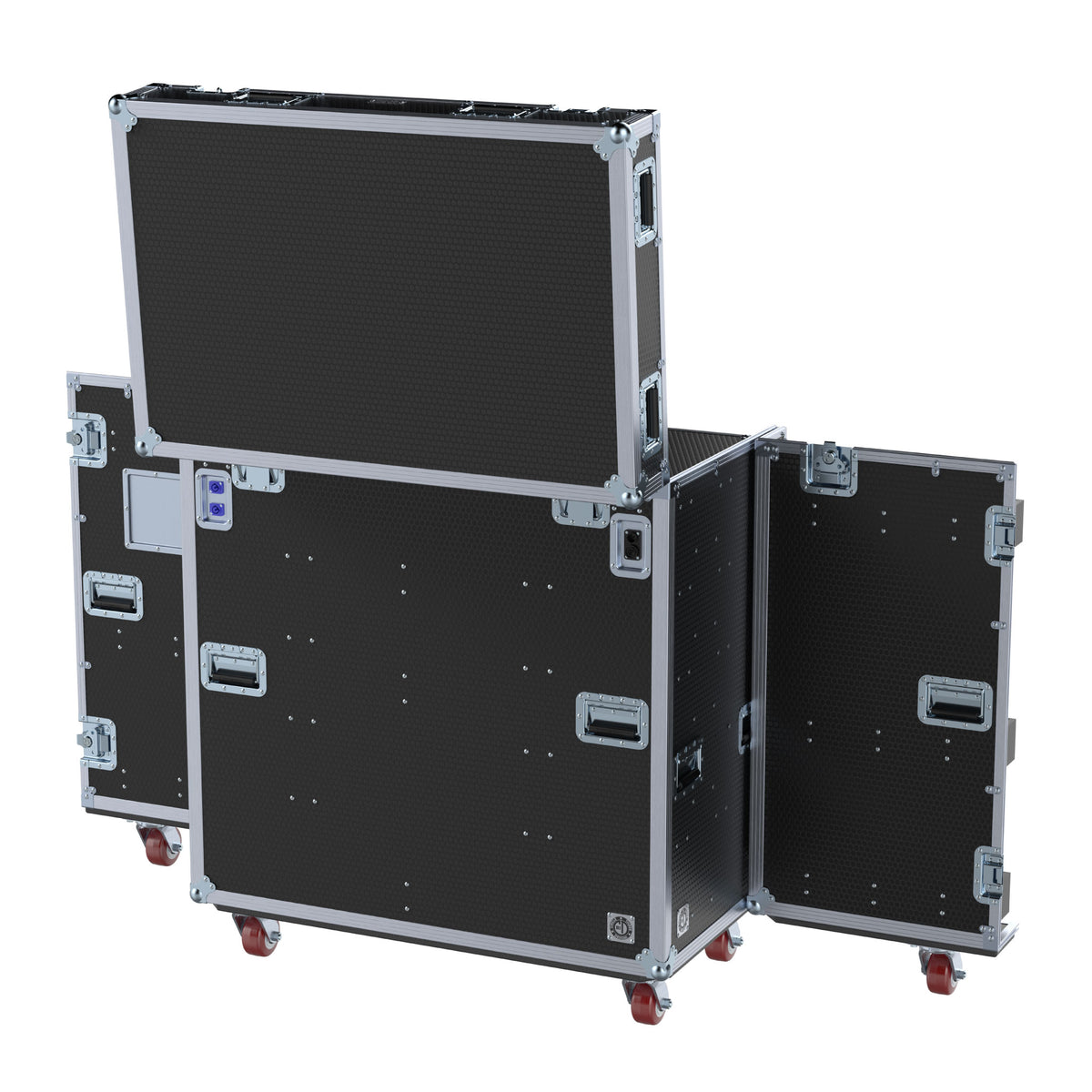

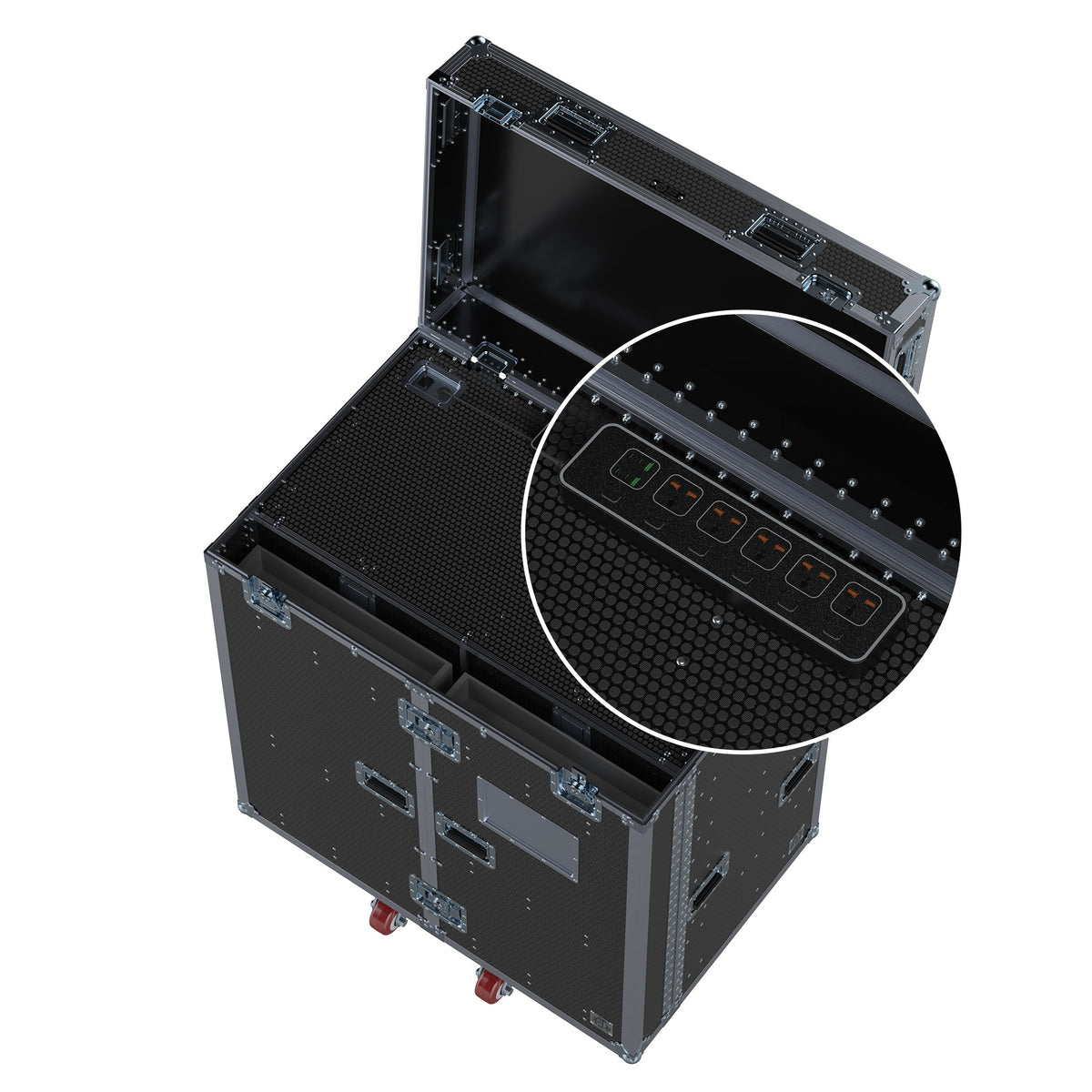

Power: Recessed power distributer on the work surface with 6 Edison outputs. Recessed dish on the exterior of the case with powerCON-in and powerCON-out allowing multiple workstations to be linked together and powered from one source. Recessed dish on the exterior of the case with two blank Neutrik D punchouts for future expansion.

• Overhead LED light-bar.
• Dry erase whiteboard.
• Stainless steel magnetic tool bar with 150 pounds of pulling force.
• Chief monitor mount (up to 32") mounted to 3/4" Baltic Birch plywood with multiple vertical mounting positions.
• Chief Fusion Series Tilting TV mount (up to 43").
• 4 extra heavy duty locking casters.
