Coffee Workstation - Double Wide

Design: Flip-top lid with either a lift-off front lid or with a split-hinged front lid with cubbies.
Dimensions: Designed with "truck pack friendly" dimensions, this product has a 30" x 45" footprint.
Handles: 14 recessed handles.
Latches: Lift-off front lid case: 8 recessed latches (one pad-lockable). Split-hinged front lid case: 5 recessed latches (one pad-lockable).
Label Dish: 1 recessed label dish (perfect for dry-erase PAL labels).
Corners: Ball corners are used on these cases in order to take the brunt of the abuse and protect the actual case.
Casters: Lift-off front lid case: Four extra heavy duty 4" casters (each rated at 750 pounds) - non locking. Split-hinged front lid case: Six extra heavy duty 4" casters (each rated at 750 pounds) - non locking. All cases come with a full length 3/4" Baltic Birch caster pallet.

Material: 1/2" Finnish Birch plywood with black phenolic resin. This 100% Finnish Birch plywood is made specifically to our specifications. The exterior phenolic resin has a “circle grip” pattern compared to the typical “haircell” pattern found on ABS. Unlike ABS, the phenolic resin will never delaminate.
Extrusions: Double angle extrusion is used to join the panels of the case together. It has a channel that the Finnish Birch plywood lives in. This is superior to single angle extrusion which is simply a piece of right angle aluminum that covers the corner. Double angle extrusion makes for a better, stronger and more durable case. Tongue and groove extrusion is used around the edge of the case where the lid meets the body.
Rivets: All of the rivets are backed by steel washers. Without washers, the rivets will eventually loosen and the case can fall apart.
Welding: The tongue and groove extrusions are welded at key joints in order to significantly strengthen the case. This helps to keep lids closing easily despite years of abuse on the road.
CNC / CAD: Every case starts off life as a detailed CAD model before it hits the manufacturing floor. Panels are precisely machined using state of the art CNC technology affording us the ability to consistently provide uniformity and repeatability. Aluminum extrusion lengths are calculated using CAD modeling systems to ensure a proper fit and are cut using digital technology.

Drawers: Drawers are made out of 1/2" Baltic Birch plywood.
Handles: Slam latches are used as handles to prevent the drawers from inadvertently opening.
Slides: Drawer slides are rated at 200 pounds.
Dividers: Dividers are made out of 1/2" Finnish Birch plywood and capped off with aluminum U channel. Dividers between each drawer strengthen the case by making it more rigid.

Flip-Top Lid: The interior is wrapped with plush black fabric. Additional options for the flip-top lid:
LED light bar.
Dry erase white board.
Stainless steel magnetic tool bar.
Monitor mount (up to a 32" monitor).
TV mount (up to a 43" TV).
Surface: This durable phenolic resin work surface is 41.75" high.

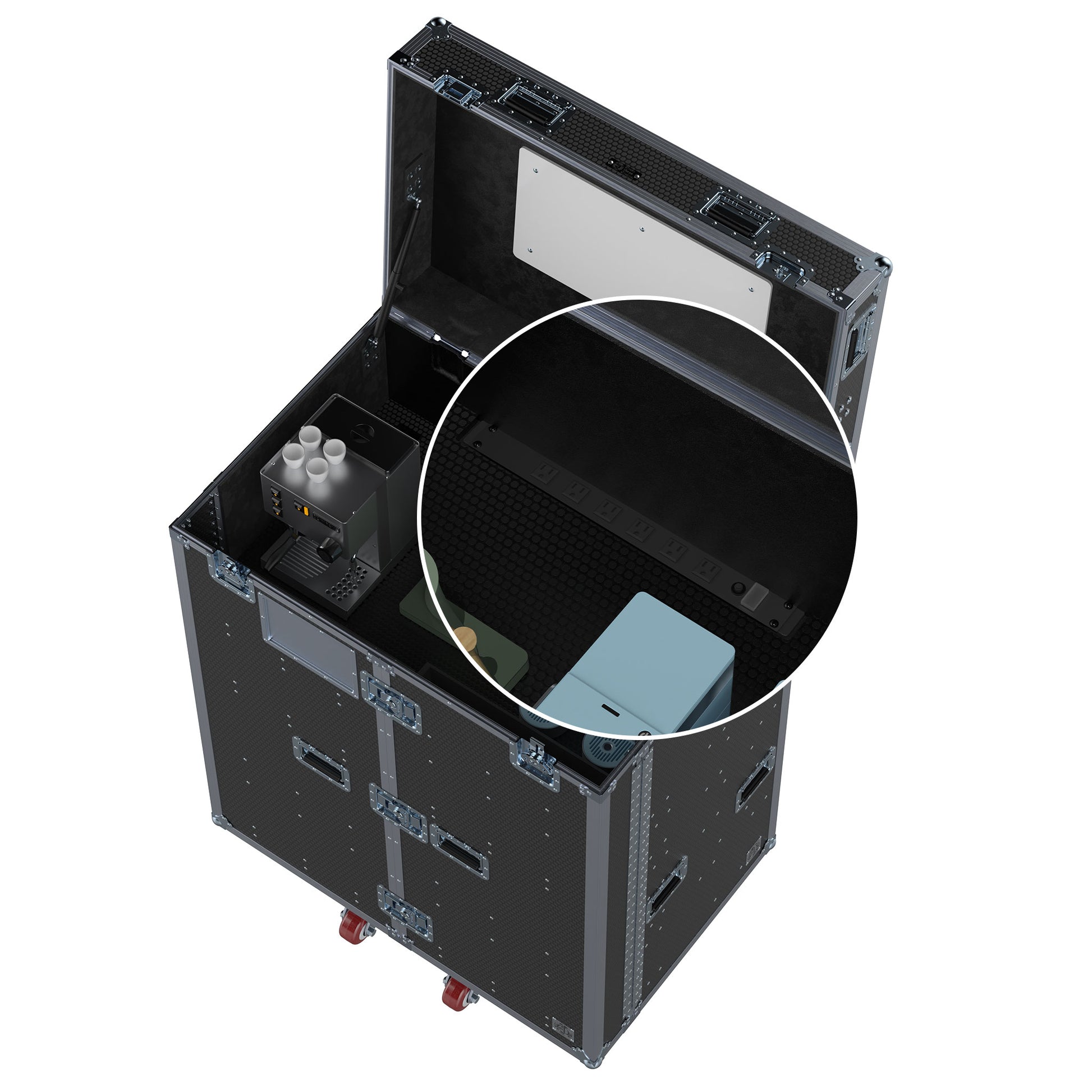

Power: Recessed power distributer on the work surface with 6 Edison outputs. Recessed dish on the exterior of the case with powerCON-in and powerCON-out allowing multiple workstations to be linked together and powered from one source. Recessed dish on the exterior of the case with two blank Neutrik D punchouts for future expansion.

• Overhead LED light-bar.
• Dry erase whiteboard.
• Stainless steel magnetic tool bar with 150 pounds of pulling force.
• Chief FTR1U monitor mount (up to 32") mounted to 3/4" Baltic Birch plywood with multiple vertical mounting positions.
• Chief MTM1U Fusion Series Tilting TV mount (up to 43").
• 2 extra heavy duty locking casters (lift-off front lid).
• 4 extra heavy duty locking casters (split-hinged front lid).
