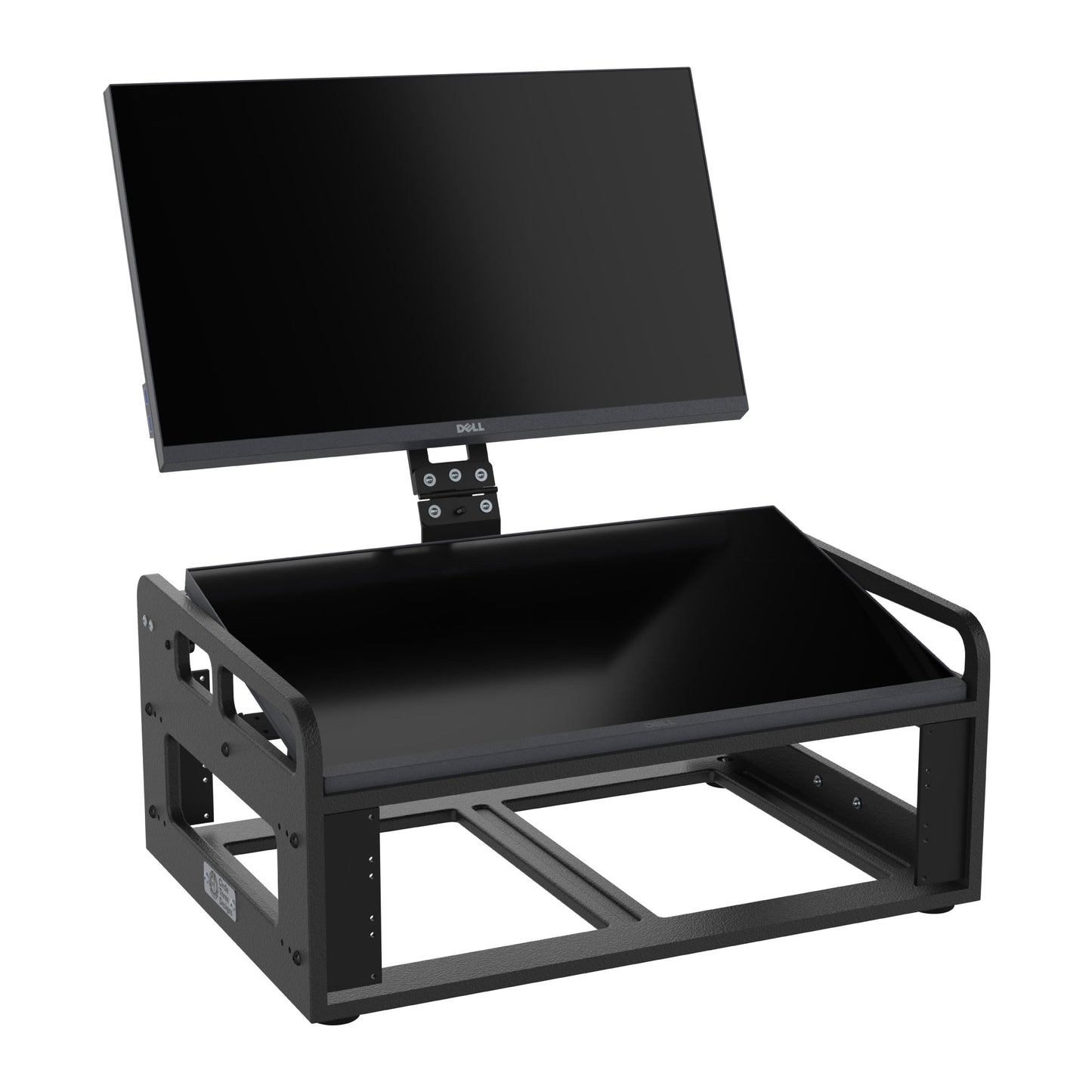

Dual Monitor Fly Rack

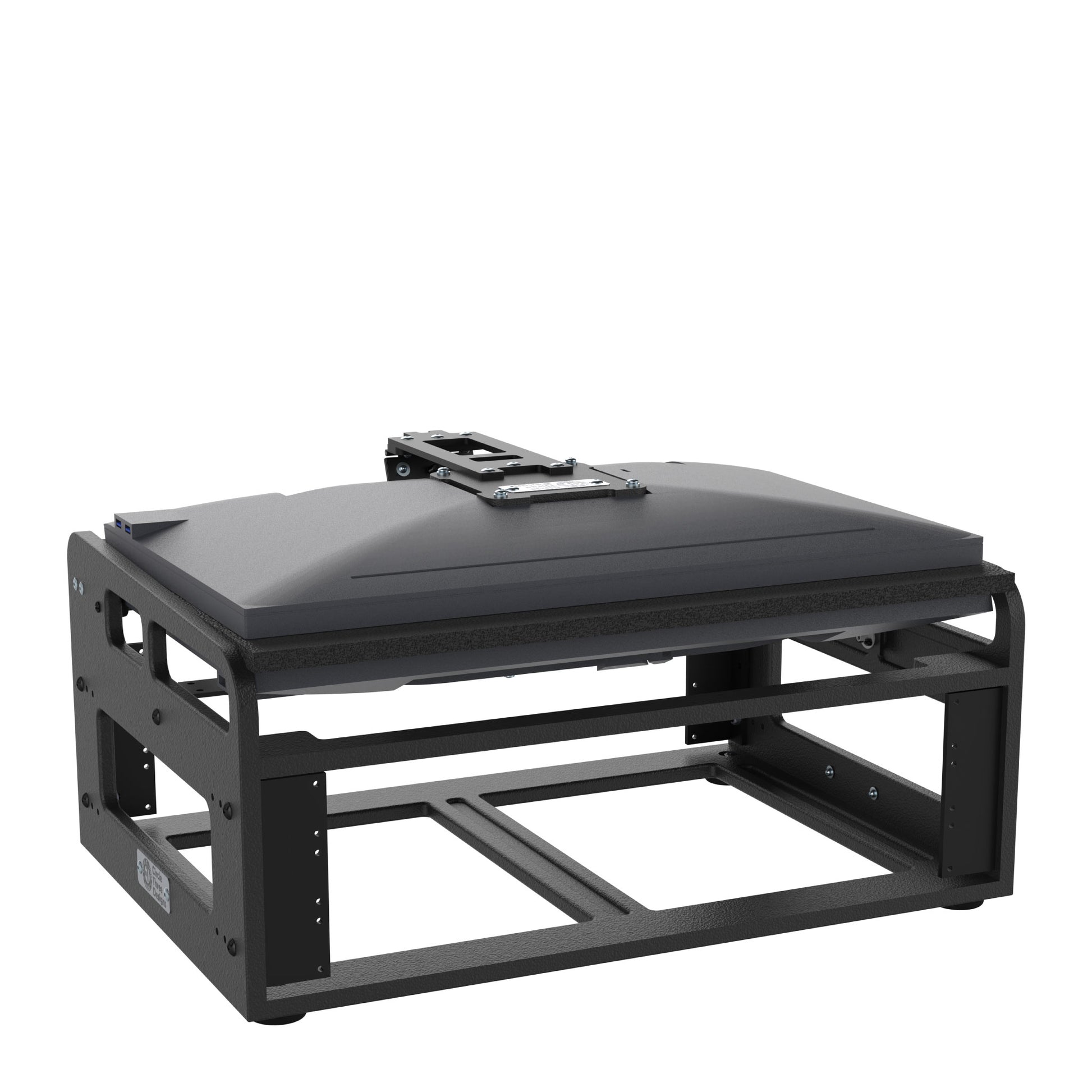

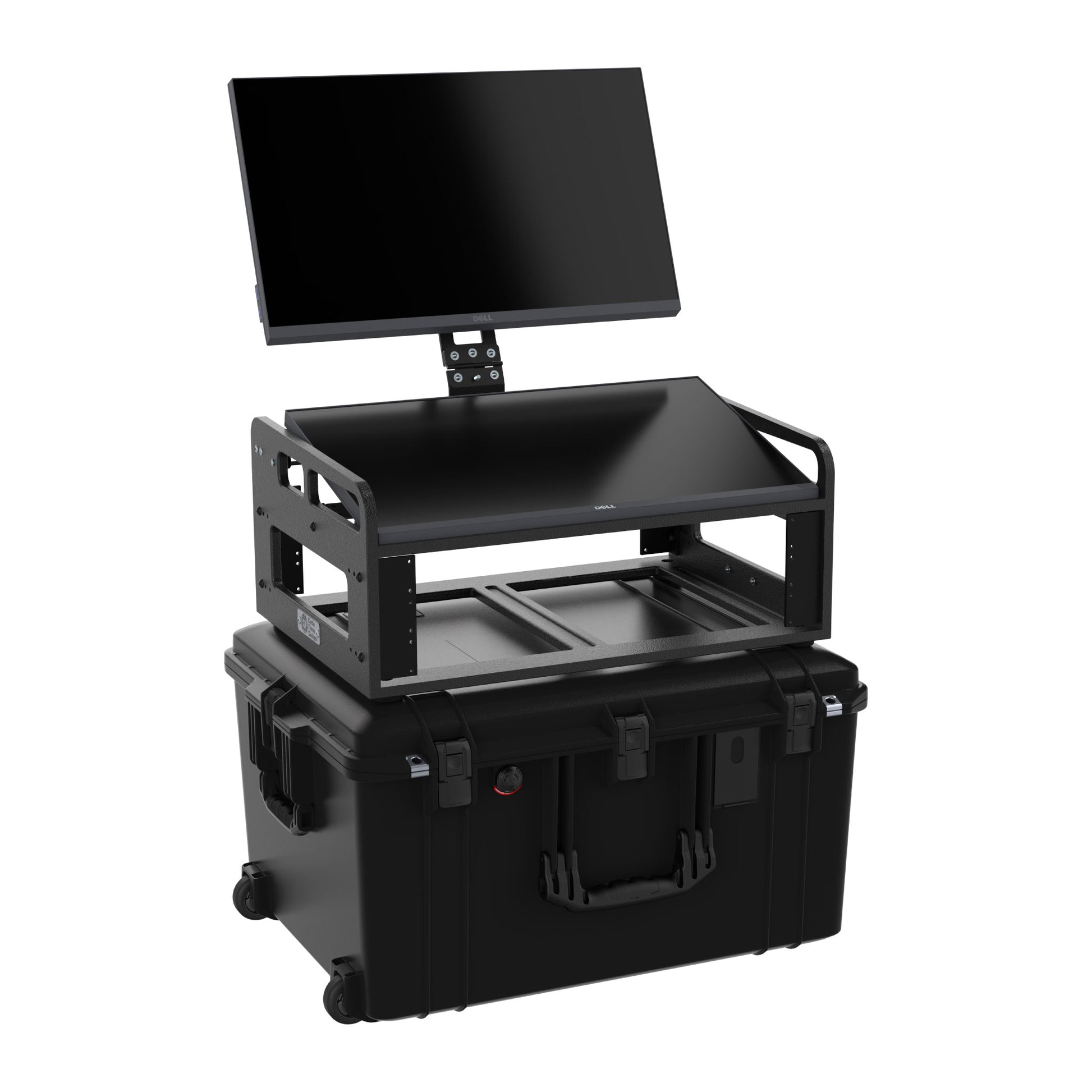

• The Dual Monitor Fly Rack is designed to hold up to the rigors of flying. This system folds up to travel in the Pelican Air 1637. This will work well for both Waves LV1 and Allen & Heath dLive Wings systems.
• Designed for two Dell P2424HT 24” touch screen monitors.
• 3RU (front and rear aluminum rack rails) below the monitors. These rack rails are adjustable (front to back) to accommodate a variety of different rack gear. They are tapped to #10-32 allowing for standard rack screws.
• Rack body depth: 15.625”.

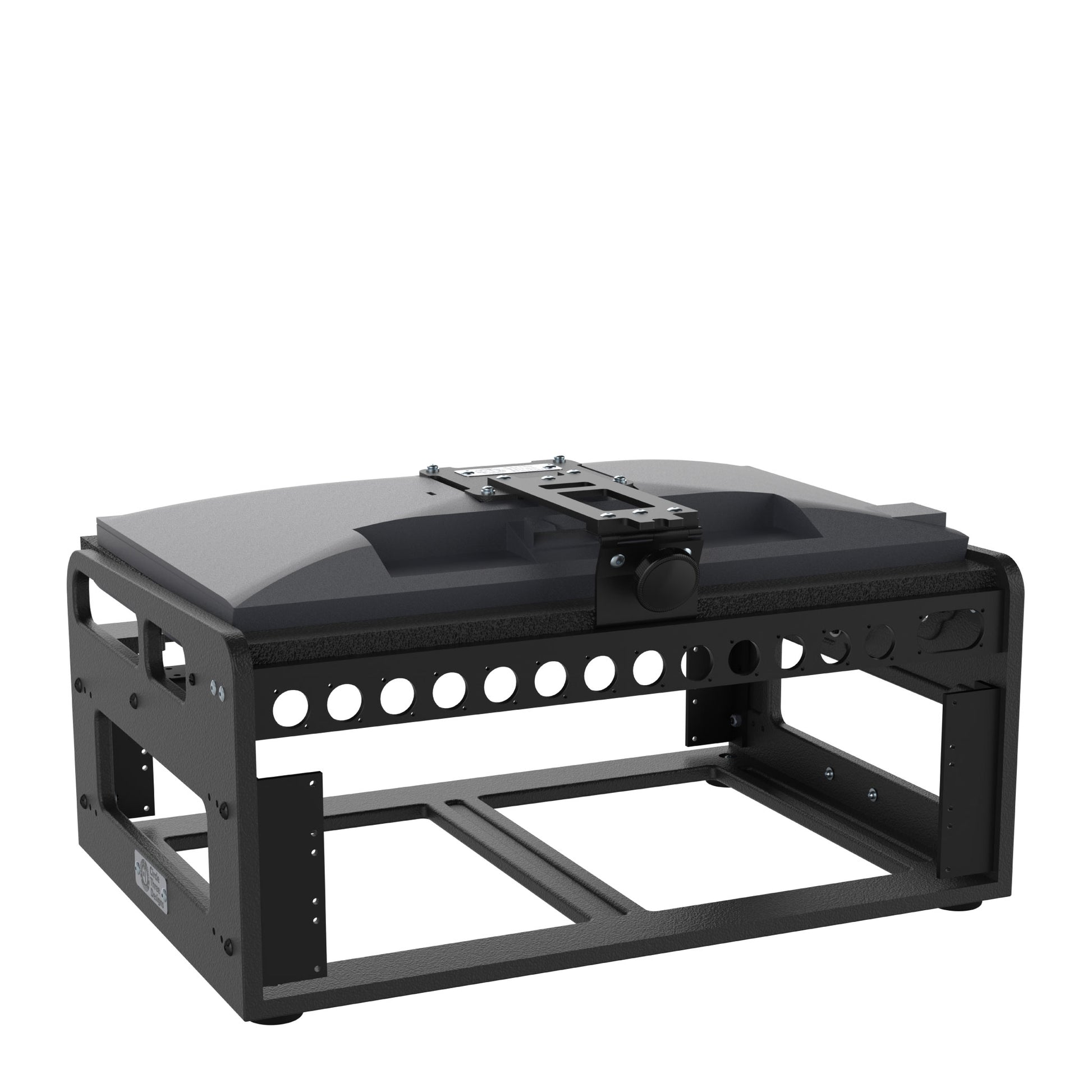

• 13 Neutrik D punch-outs on the rear panel with tapped #4-40 holes.
• 1 Neutrik powerCON TRUE1 punch-out with tapped #4-40 holes. This is designed for the NAC3PX-TOP.
• Two 3/8”-16 and three 1/4”-20 tapped holes with the ability to accept “ARRI-style” locating pins. Use these with magic arms to attach additional monitors and accessories.

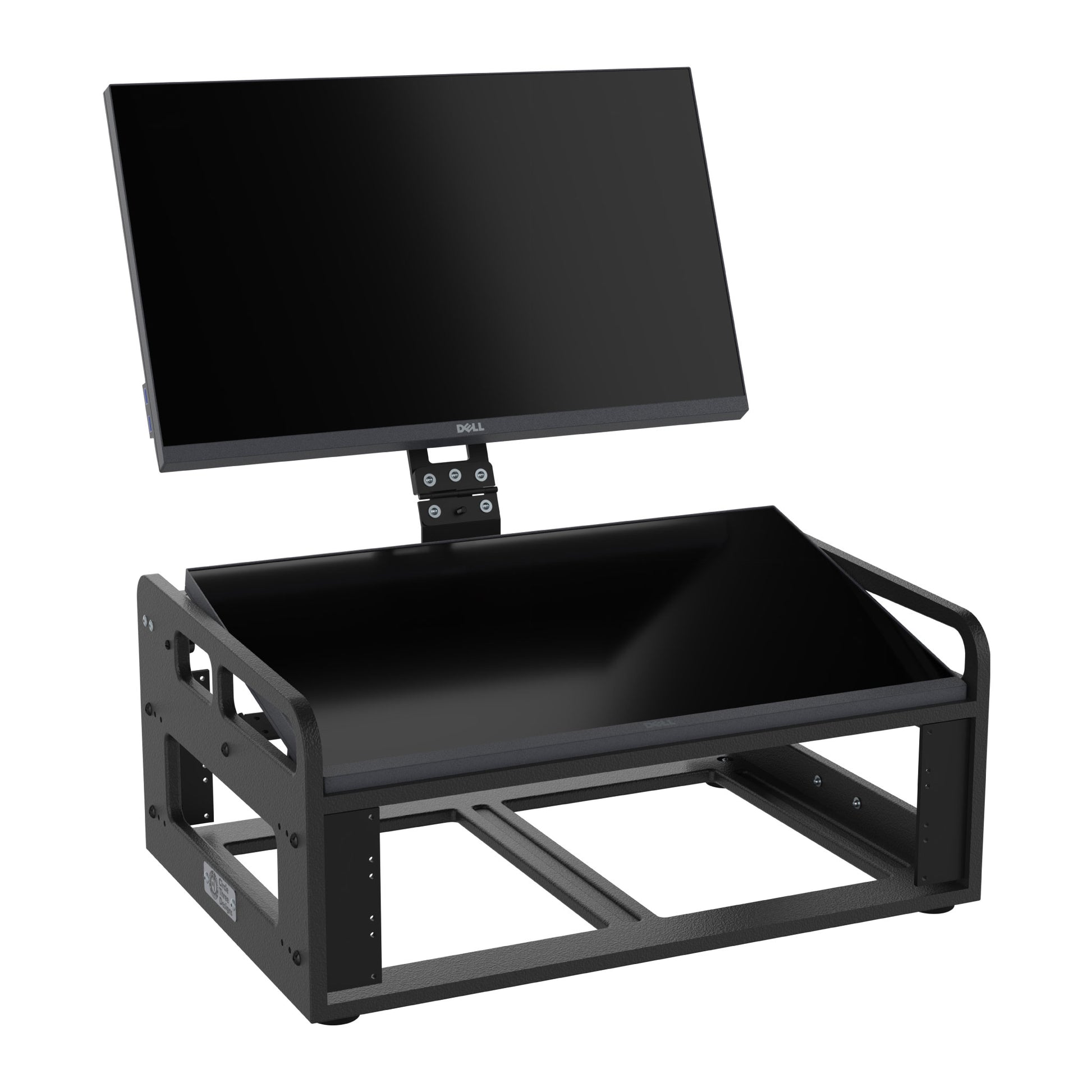

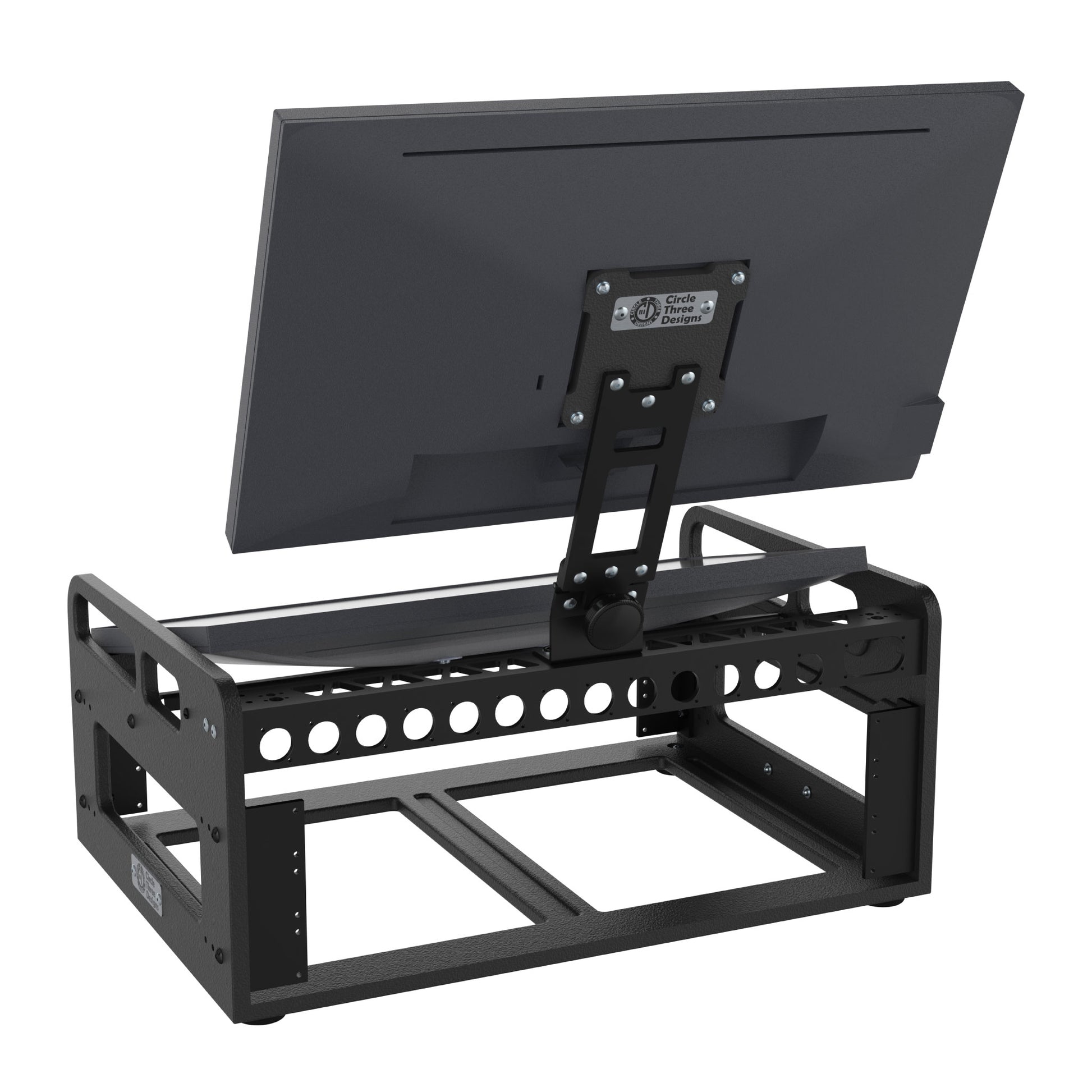

• Aluminum vertical monitor mount locks in two positions (108 degrees & 120 degrees). Remove this monitor mount to access additional 3/8”-16 and 1/4”-20 holes to attach other monitor brackets.
• Rack weight (empty): 7.4 pounds.
• Pelican Air 1637 weight (with foam): 17.2 pounds.
