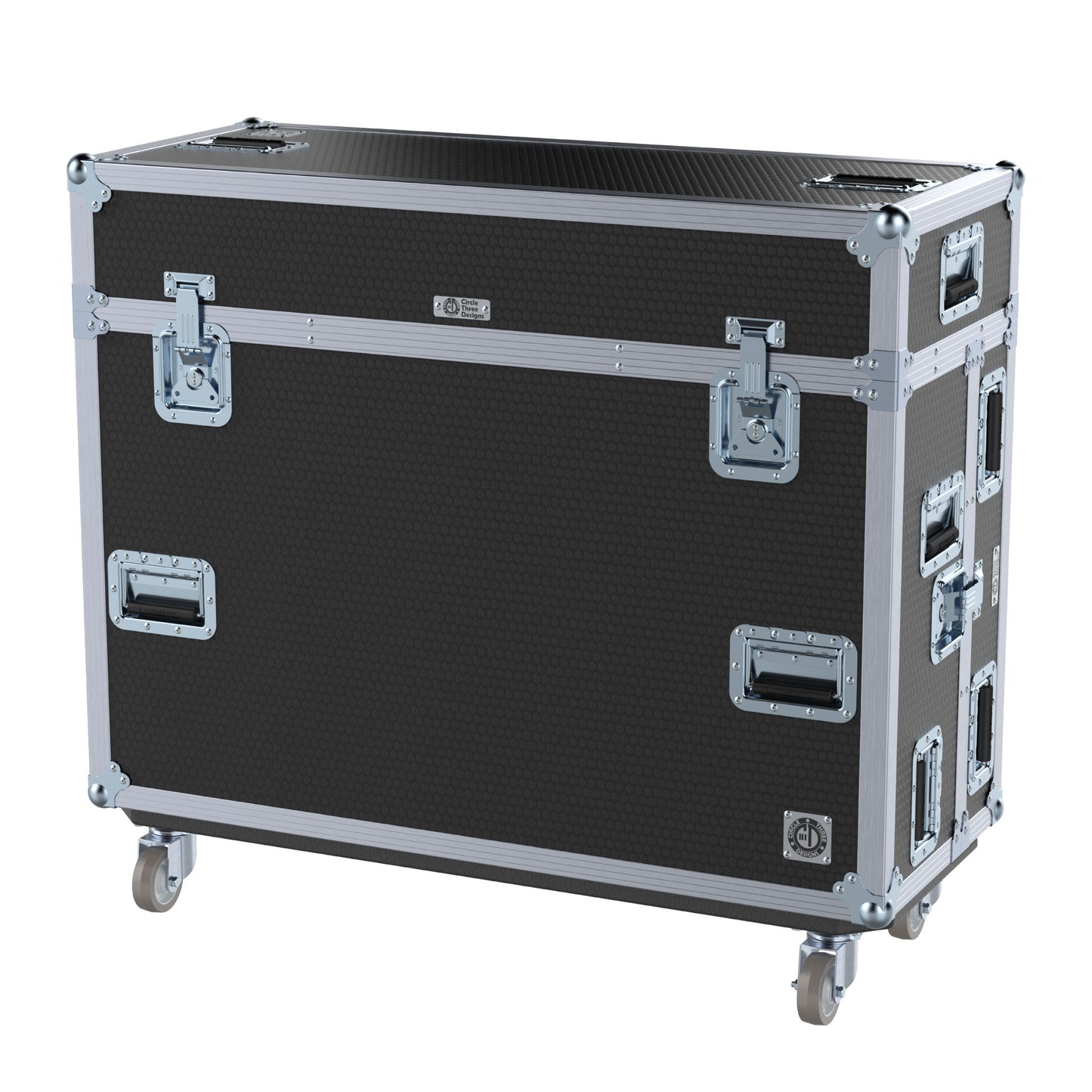

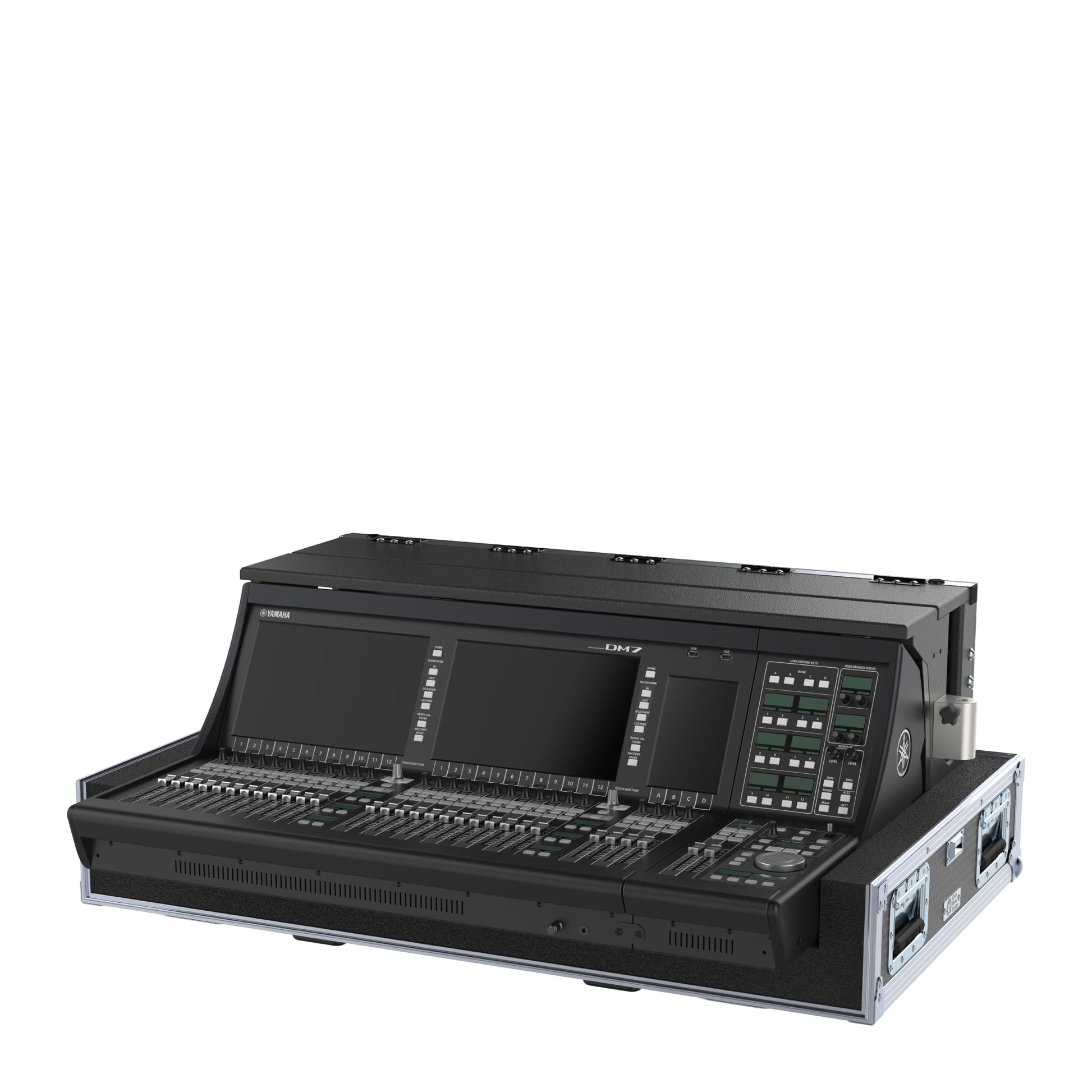

Console Road Case

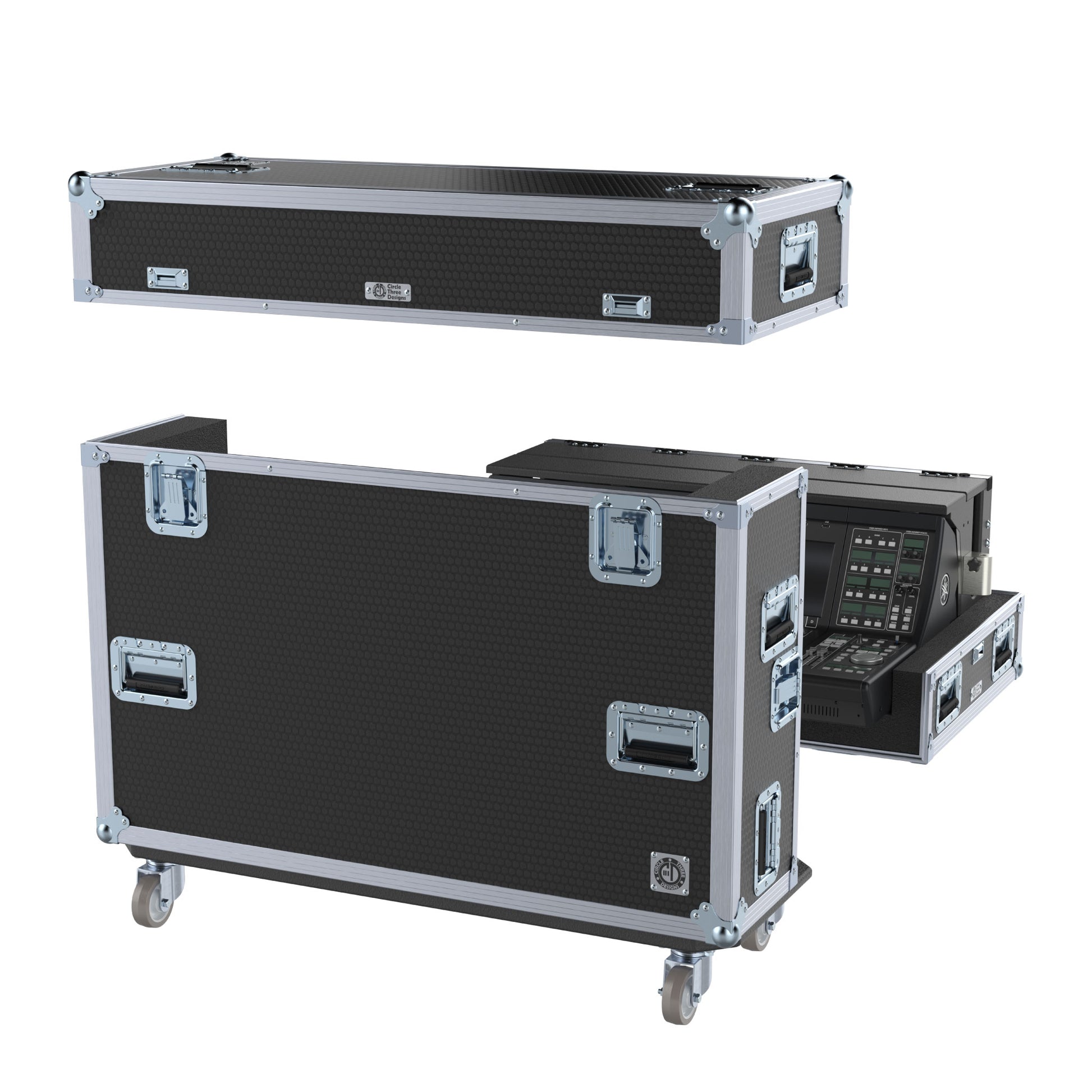

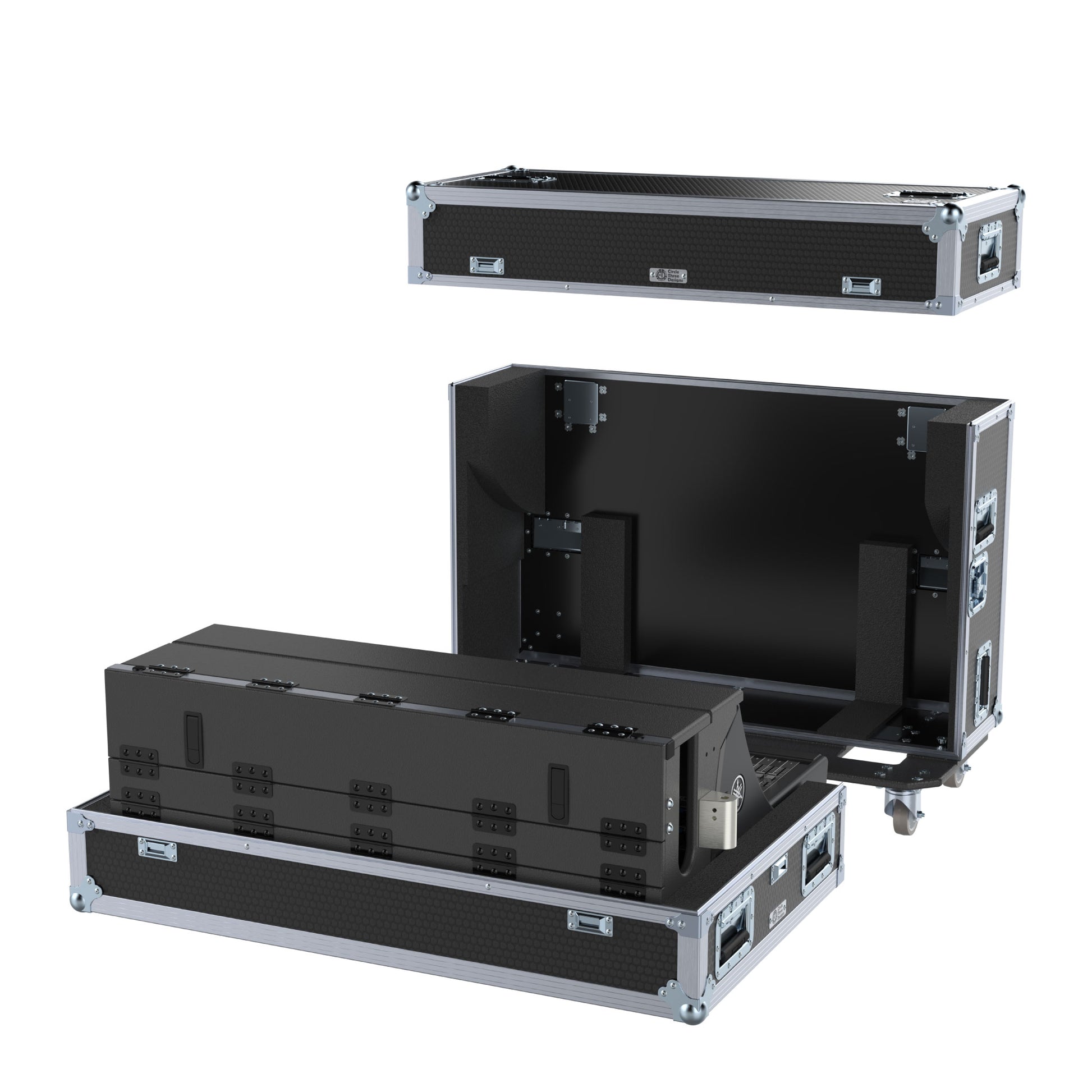

Design: 3 piece road case with doghouse.
Handles: Recessed handles are used on all of our cases.
Latches: Recessed or span latches are used on these cases.
Corners: Ball corners are used on these cases in order to take the brunt of the abuse and protect the actual case.
Casters: Four 3.5" casters (non-locking) are used on all of our cases. Four 4" casters (each rated at 450 pounds) can be used on cases that are deeper. All cases come with a full length 3/4" Baltic Birch caster pallet.
Foam: Minimum 2" foam is used on any part of the case that comes in contact with the console.

Material: 1/2" Finnish Birch plywood with black phenolic resin. This 100% Finnish Birch plywood is made specifically to our specifications. The exterior phenolic resin has a “circle grip” pattern compared to the typical “haircell” pattern found on ABS. Unlike ABS, the phenolic resin will never delaminate.
Extrusions: Double angle extrusion is used to join the panels of the case together. It has a channel that the Finnish Birch plywood lives in. This is superior to single angle extrusion which is simply a piece of right angle aluminum that covers the corner. Double angle extrusion makes for a better, stronger and more durable case. Tongue and groove extrusion is used around the edge of the case where the lid meets the body.
Rivets: All of the rivets are backed by steel washers. Without washers, the rivets will eventually loosen and the case can fall apart.
Welding: The tongue and groove extrusions are welded at key joints in order to significantly strengthen the case. This helps to keep lids closing easily despite years of abuse on the road.
CNC / CAD: Every case starts off life as a detailed CAD model before it hits the manufacturing floor. Panels are precisely machined using state of the art CNC technology affording us the ability to consistently provide uniformity and repeatability. Aluminum extrusion lengths are calculated using CAD modeling systems to ensure a proper fit and are cut using digital technology.

• Recessed label dish (perfect for dry-erase PAL labels).
• Casters (2 locking) with a 3/4" Baltic Birch caster pallet.
• Monitor mounts.
• Sliding tray.
• Rack spaces.
• Storage cavity in lid.
