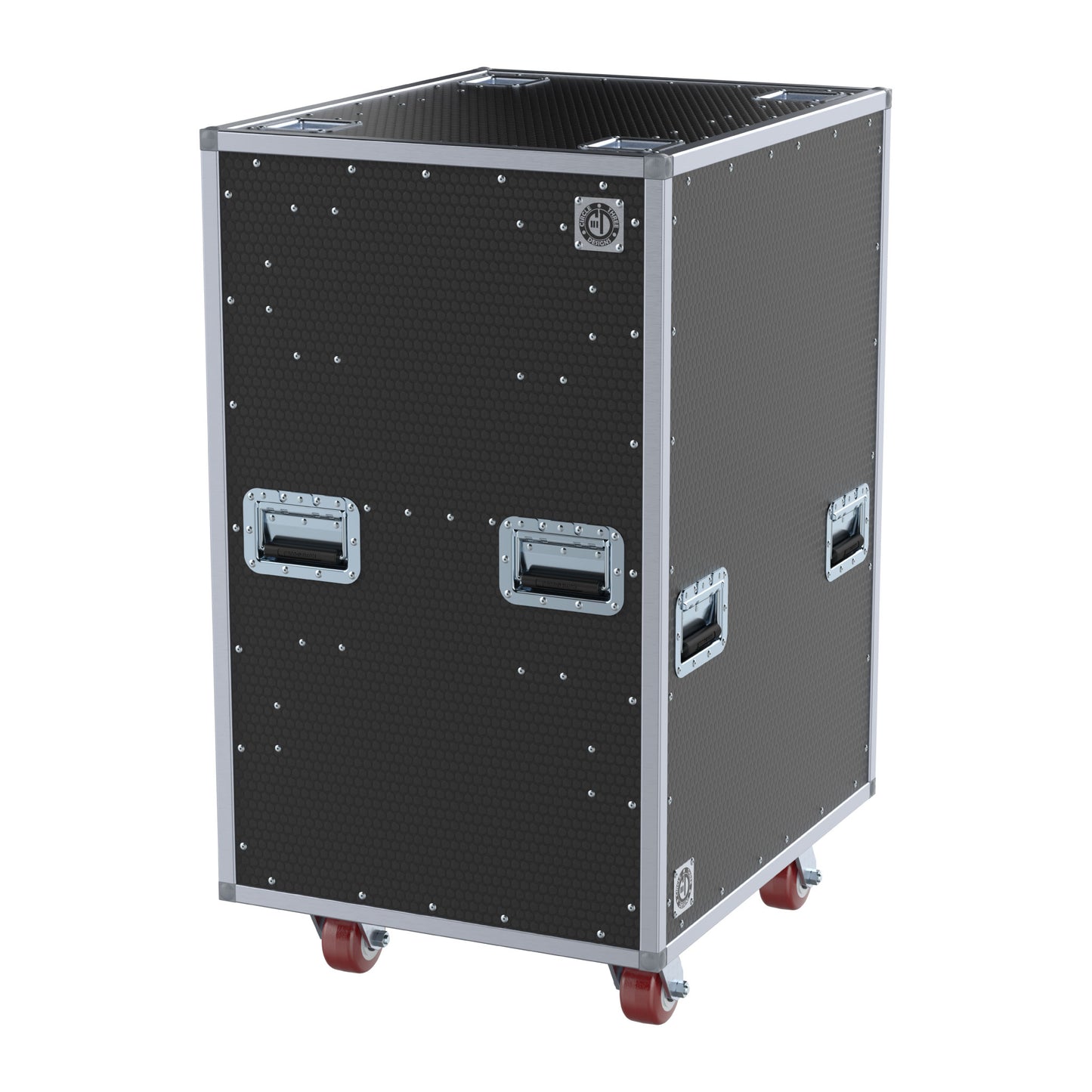

CPAC Workbox - 24" x 30" Single Wide

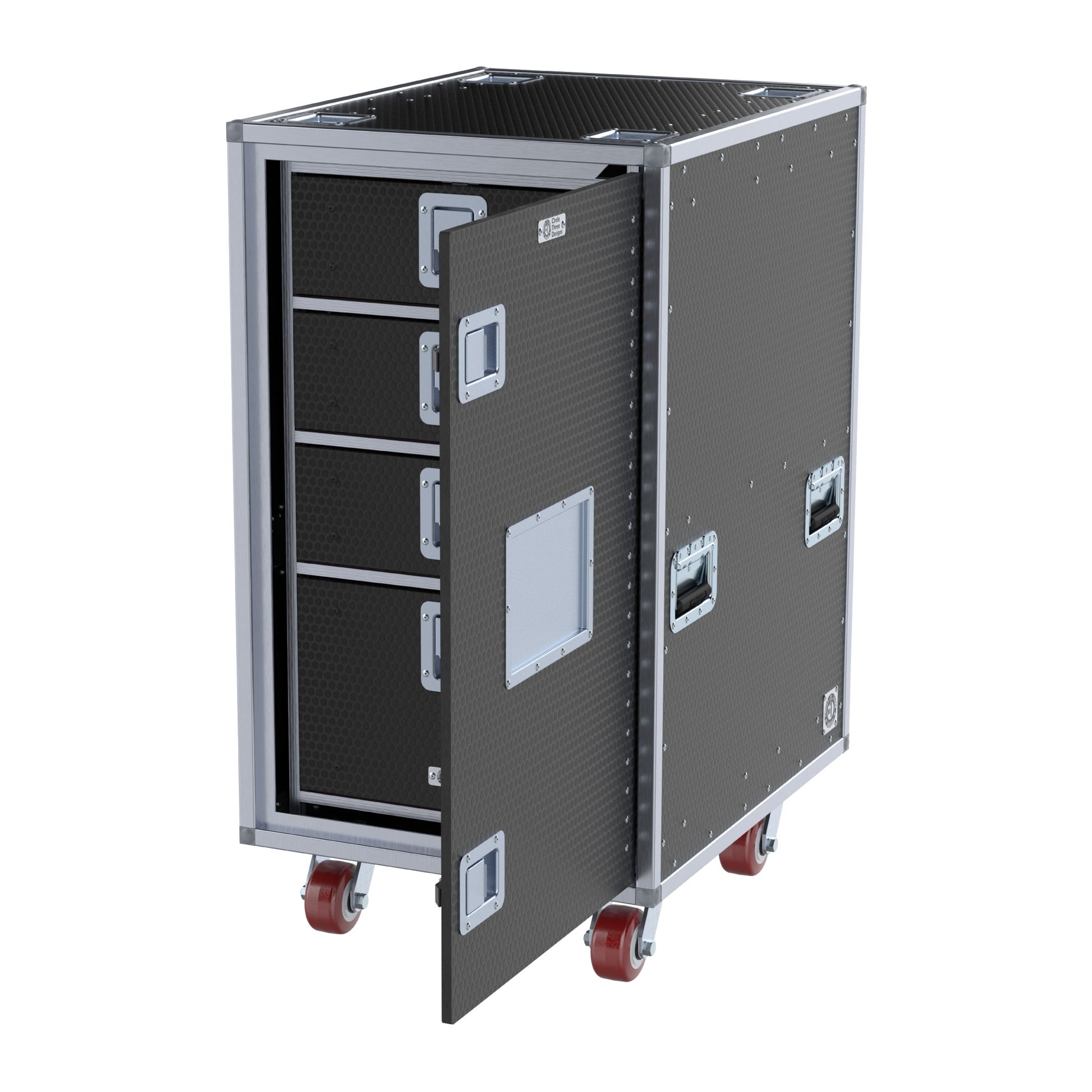

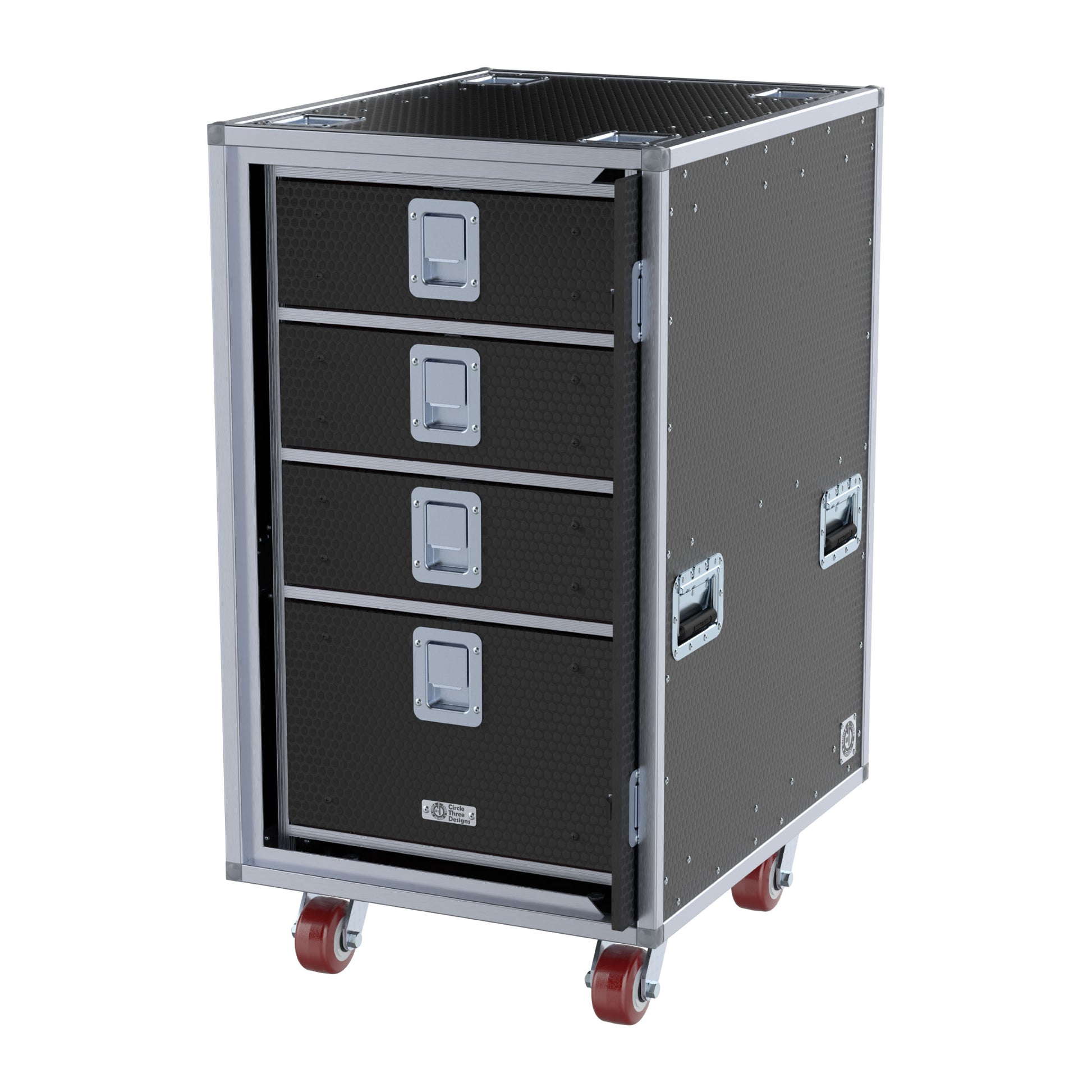

Design: Pocket door front lid design with a four drawer layout.
Dimensions: Designed with "truck pack friendly" dimensions, this case is 24" x 30" x 44"H.
Handles: 6 recessed handles (2 on each side of the case besides the front lid).
Latches: 2 slam latches on the front pocket door.
Label Dish: 1 recessed label dish (perfect for dry-erase PAL labels).
Casters: Four extra heavy duty 4" casters (non-locking) each rated at 750 pounds. All cases come with a full length 3/4" Baltic Birch caster pallet.
Caster Cups: Stacking caster cups come standard on the cases and are used for stacking "like sized" cases.
Frame: Proprietary aerospace grade aluminum frame.

Material: 3/8" Finnish Birch plywood with black phenolic resin. This 100% Finnish Birch plywood is made specifically to our specifications. The exterior phenolic resin has a “circle grip” pattern compared to the typical “haircell” pattern found on ABS. Unlike ABS, the phenolic resin will never delaminate.
Rivets: All of the rivets are backed by steel washers. Without washers, the rivets will eventually loosen and the case can fall apart.
Welding: The tongue and groove extrusions are welded at key joints in order to significantly strengthen the case. This helps to keep lids closing easily despite years of abuse on the road.
CNC / CAD: Every case starts off life as a detailed CAD model before it hits the manufacturing floor. Panels are precisely machined using state of the art CNC technology affording us the ability to consistently provide uniformity and repeatability. Aluminum extrusion lengths are calculated using CAD modeling systems to ensure a proper fit and are cut using digital technology.

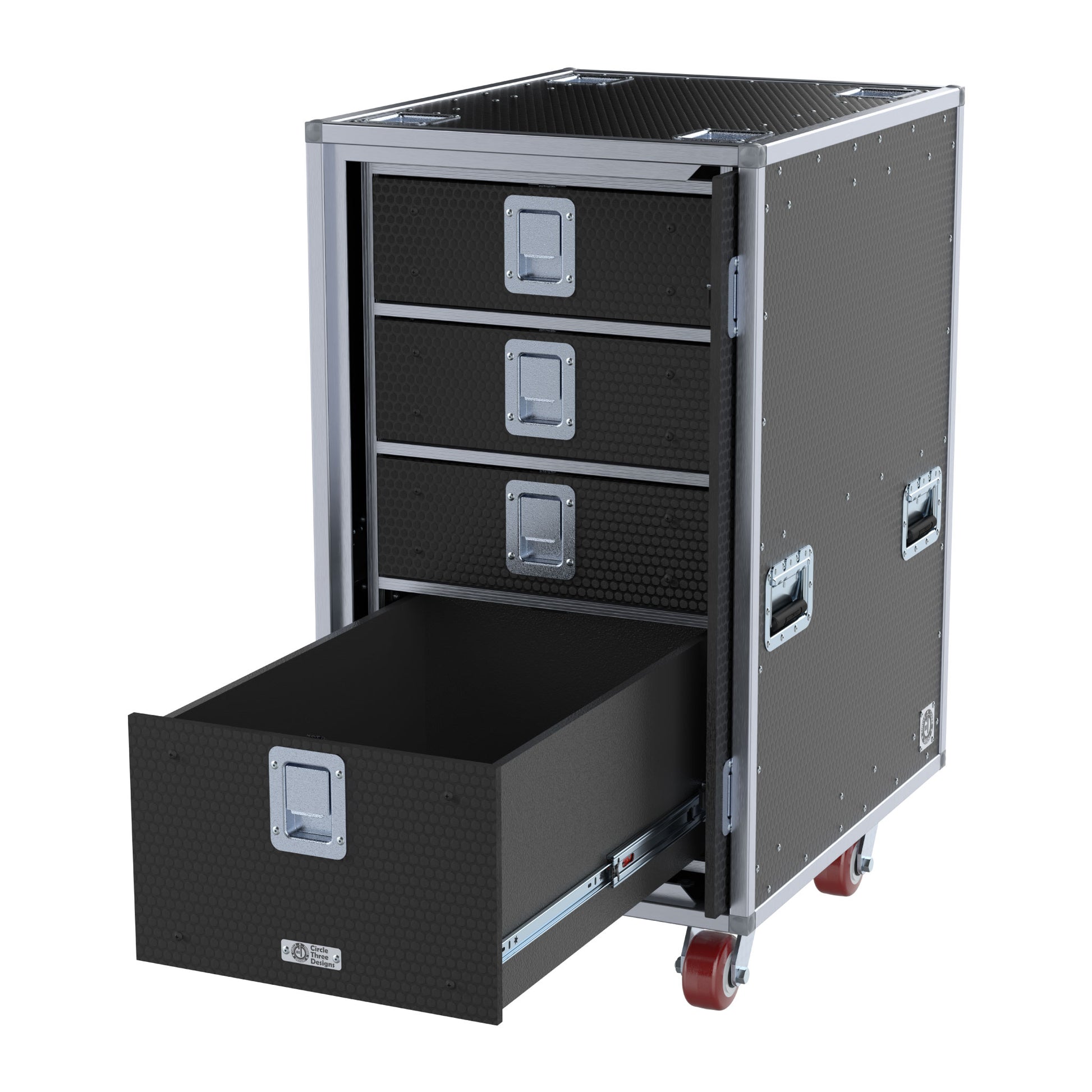

Drawers: Drawers are made out of 1/2" Baltic Birch plywood.
Handles: Slam latches are used as handles to prevent the drawers from inadvertently opening.
Slides: Drawer slides are rated at 200 pounds.
Dividers: Dividers are made out of 1/2" Finnish Birch plywood and capped off with aluminum U channel. Dividers between each drawer strengthen the case by making it more rigid.
Dimensions: Top to Bottom
- 16.8125"W x 25"L x 4.5"H
- 16.8125"W x 25"L x 4.5"H
- 16.8125"W x 25"L x 4.5"H
- 16.8125"W x 25"L x 4.5"H

• 2 locking casters.
• Stacking caster cups.
• Drawer locks.
