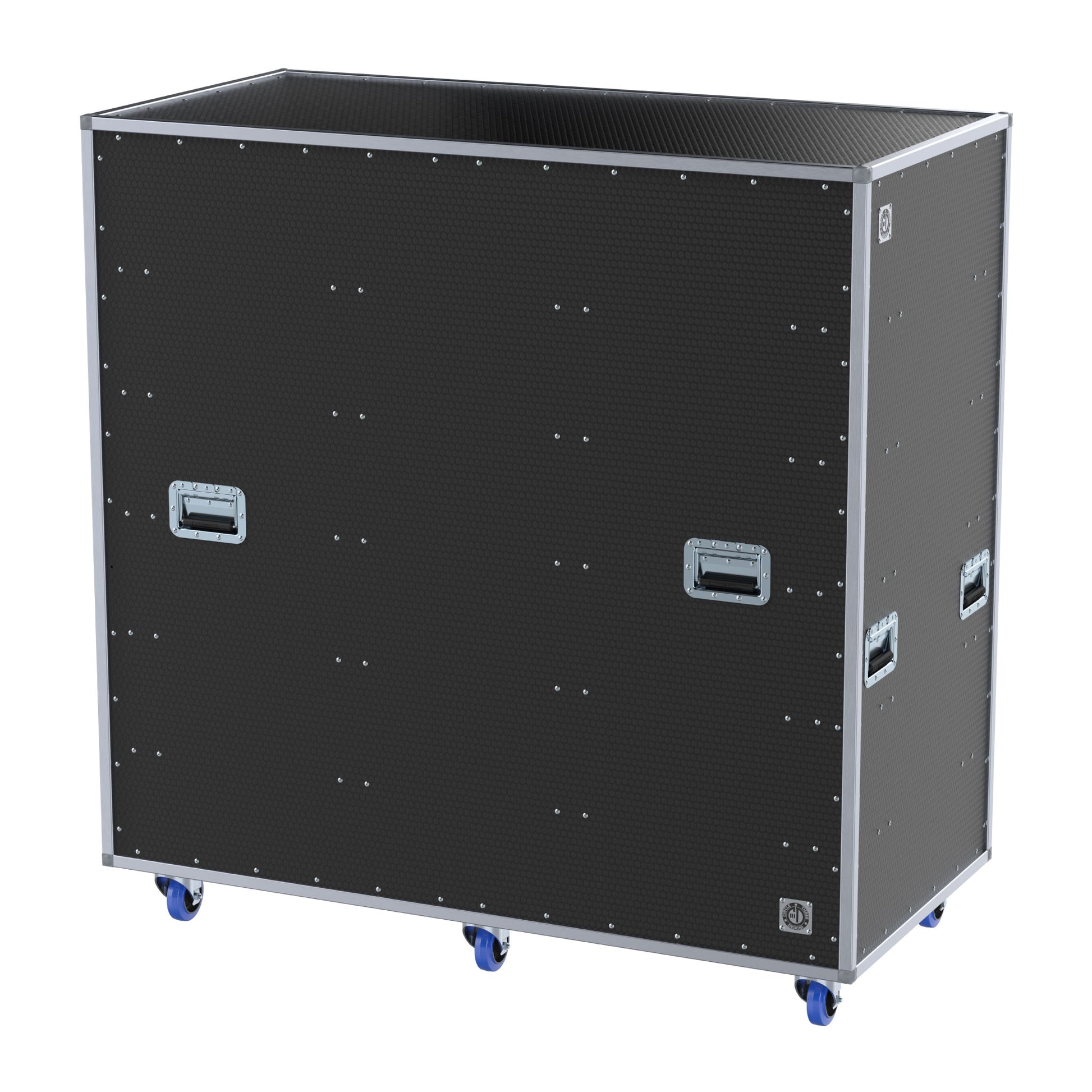

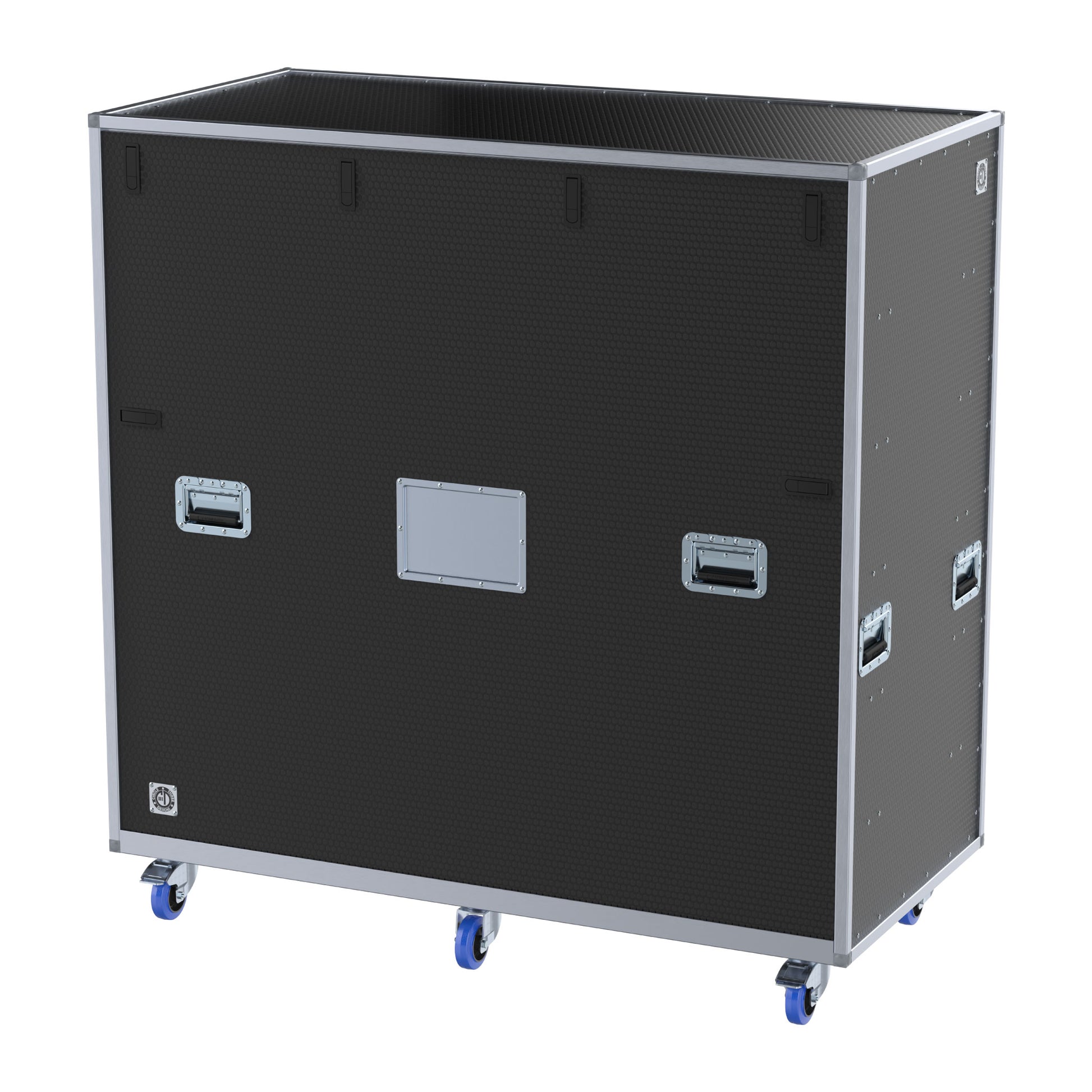

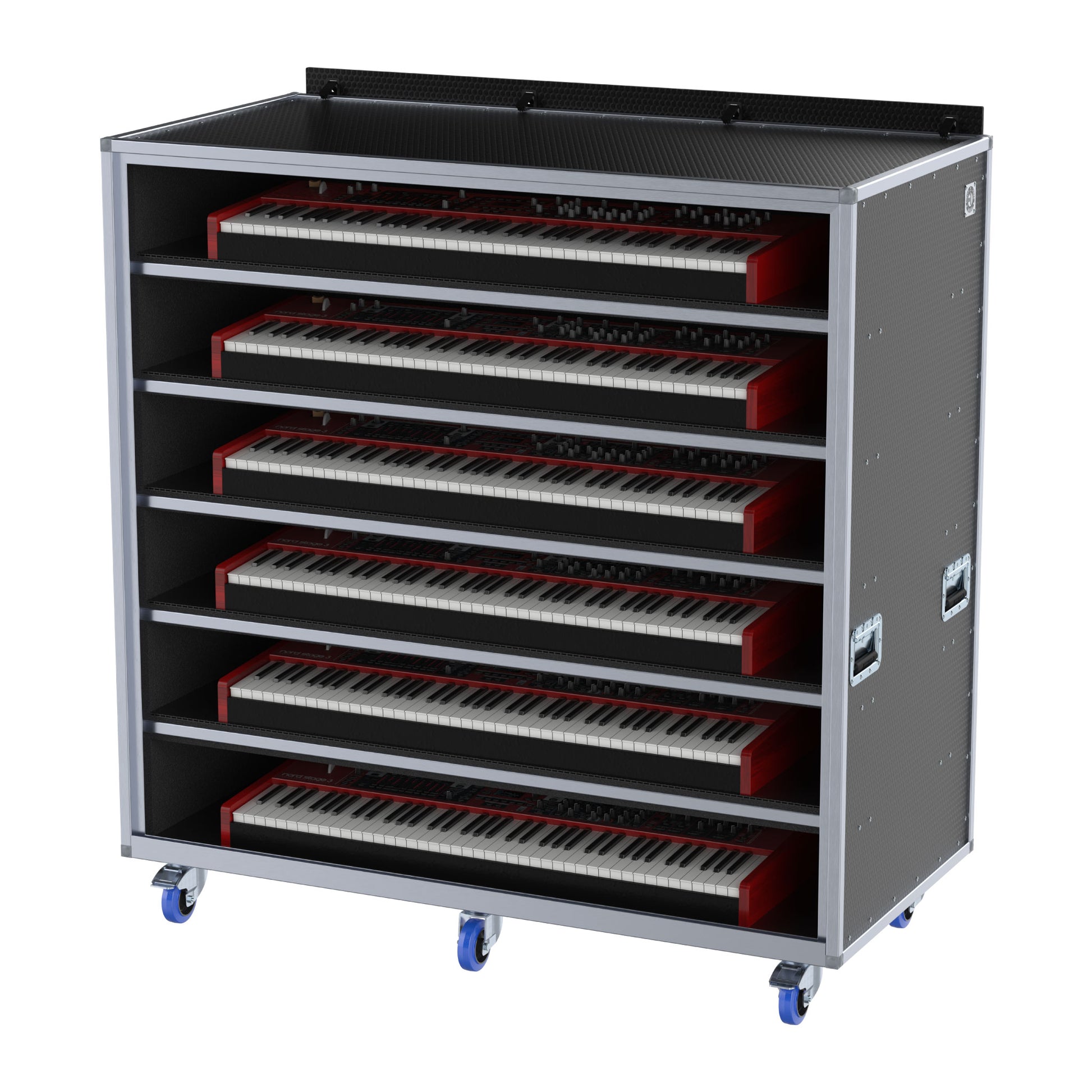

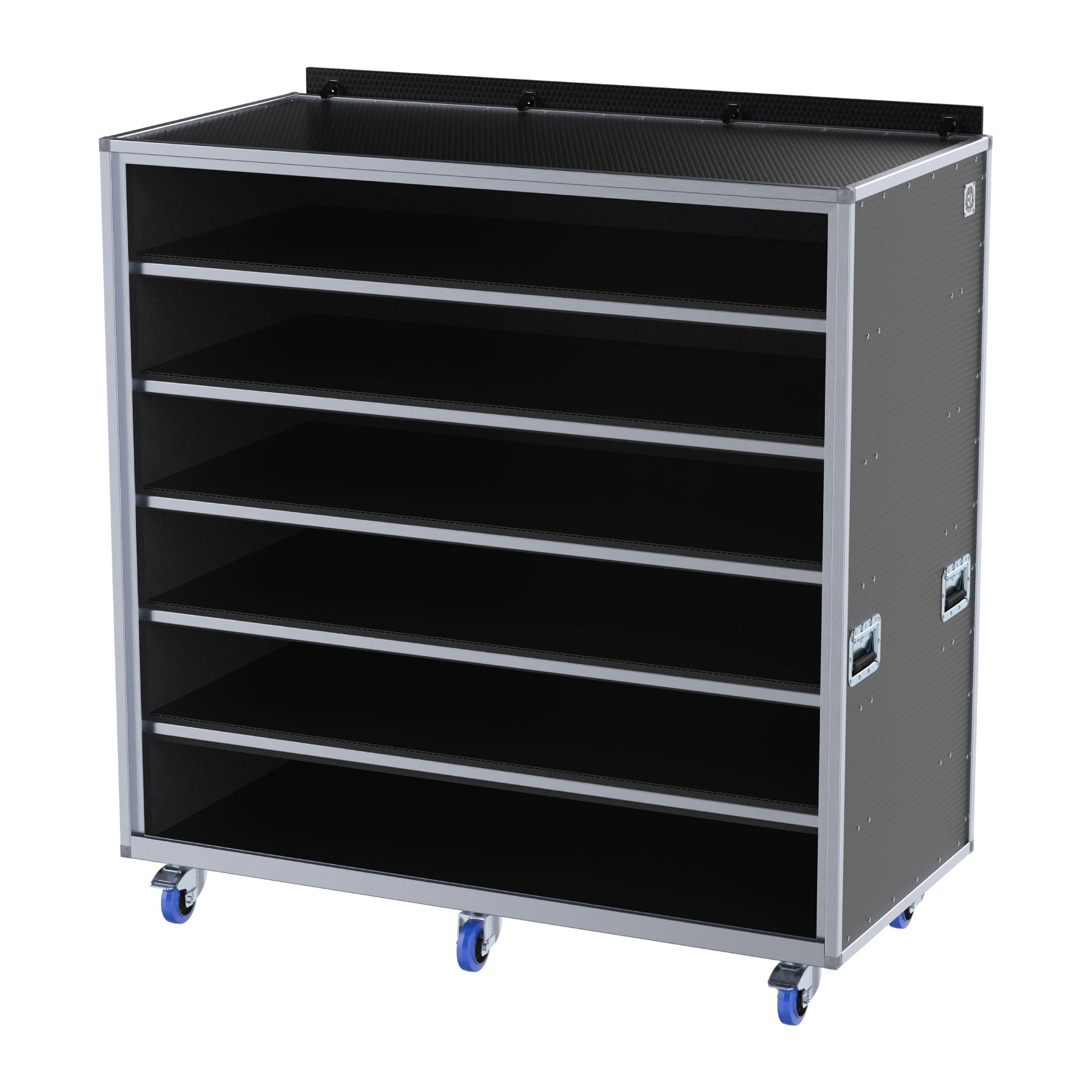

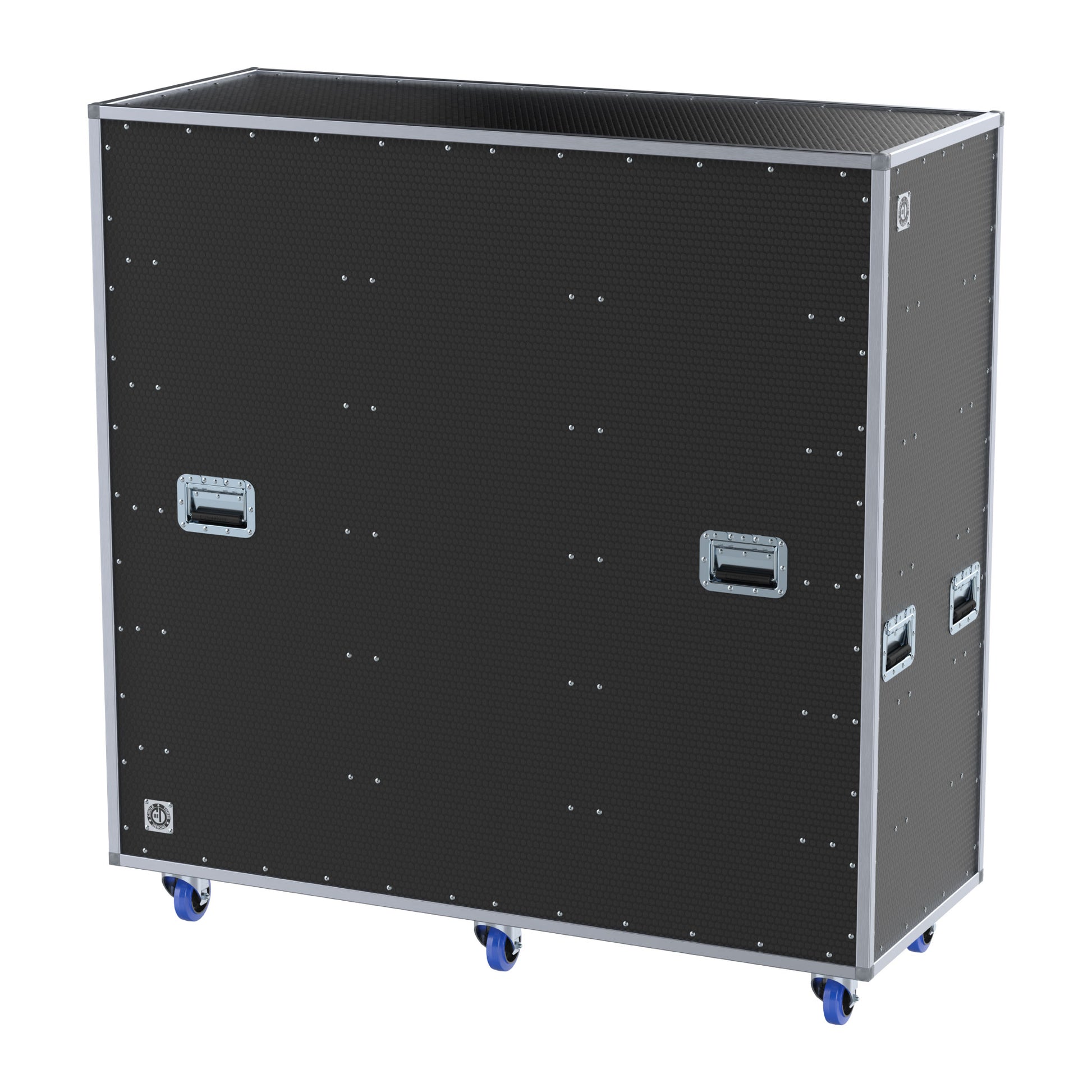

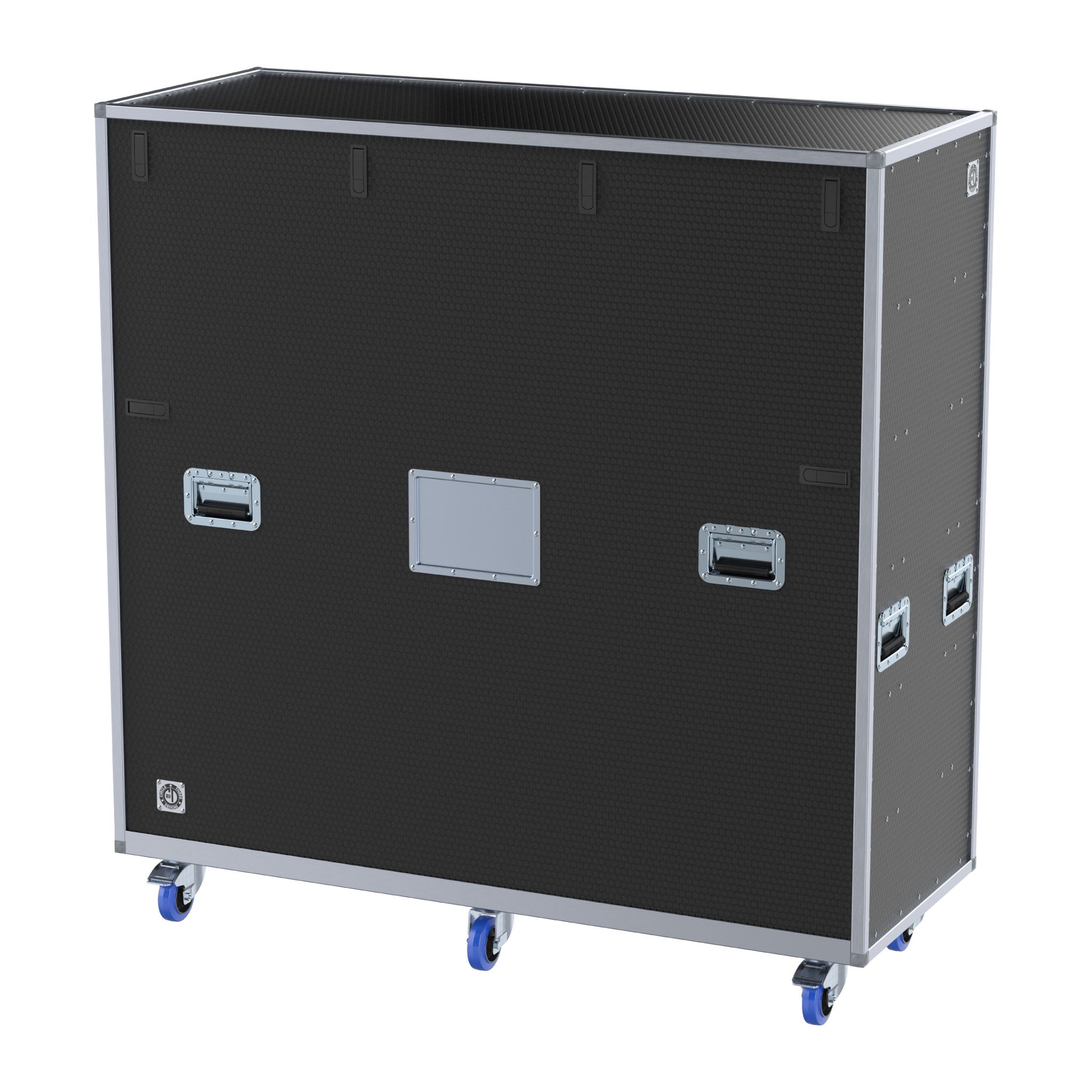

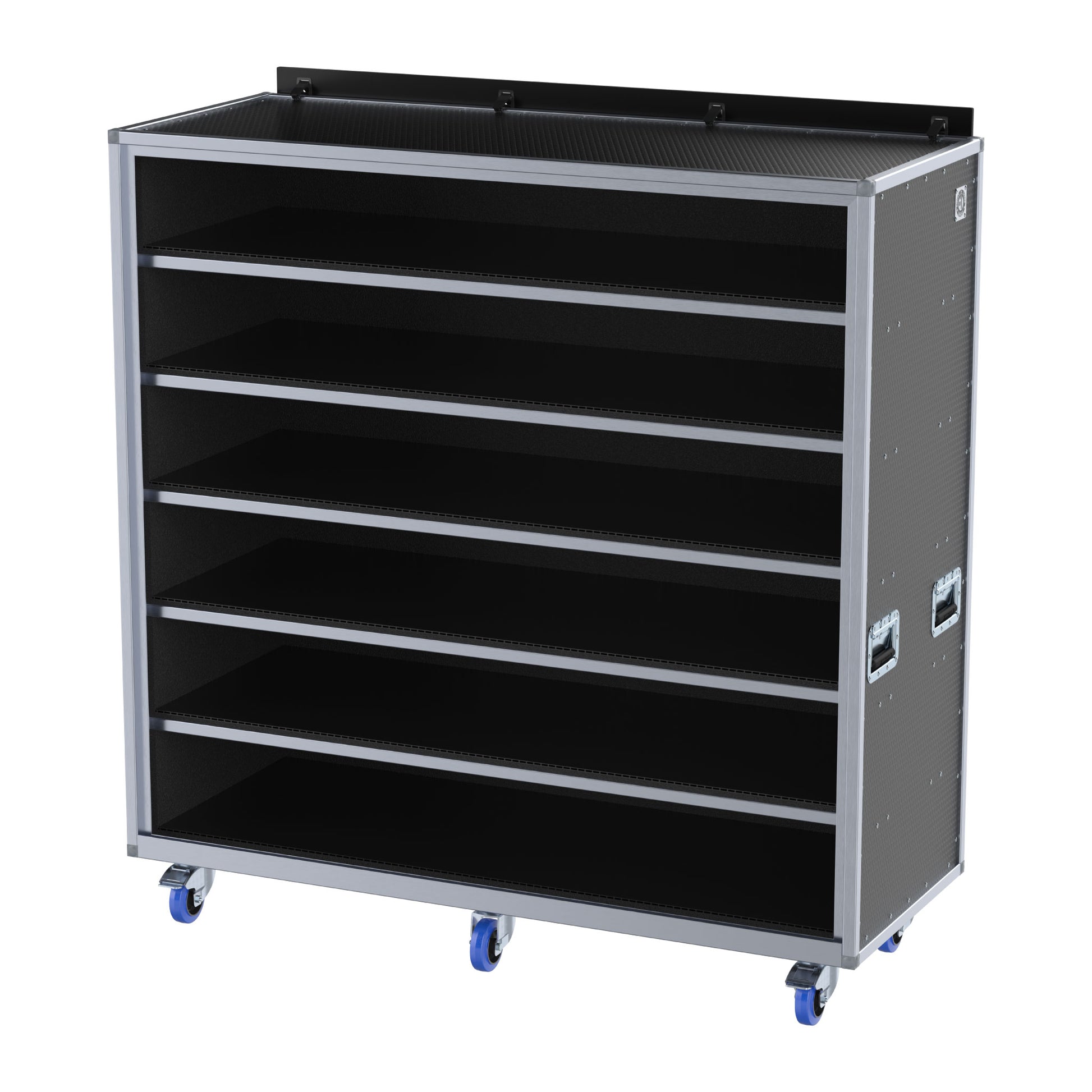

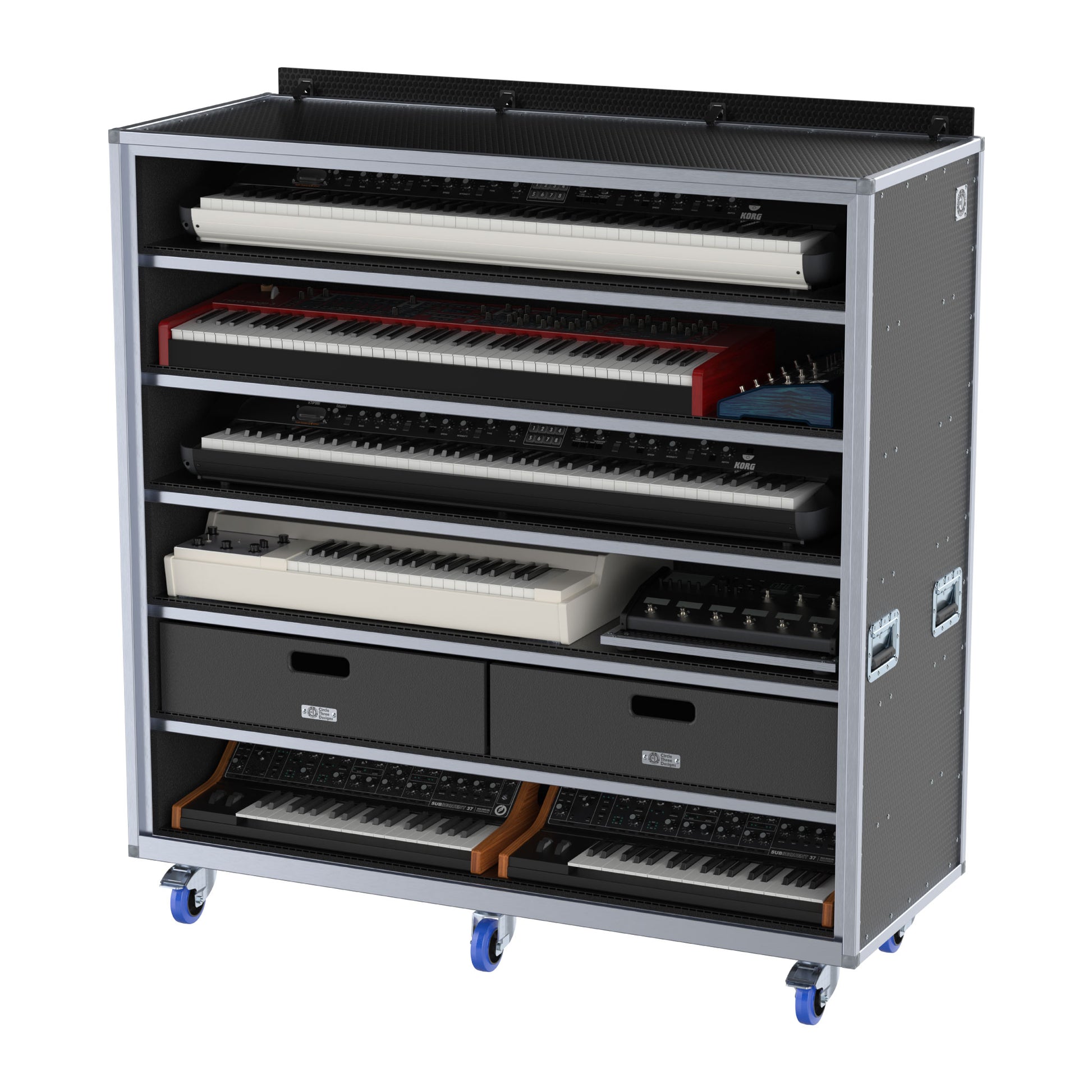

CPAC Keyboard Vault

CPAC Keyboard Vault

Standard Features

Dimensions: 60" x 30" x 61.625". The 61.625" height (including casters) allows the case to be air freighted on a PMC in the vertical position. Please confirm with your freight broker to make sure there are not any exceptions specific to your freight.
Handles: 8 handles (2 on each side of the case).
Latches: Lever latches.
Label Dish: 1 recessed label dish (perfect for dry-erase PAL labels).
Casters: Six 4" casters each rated at 450 pounds (2 locking).
Frame: Proprietary aerospace grade aluminum frame.

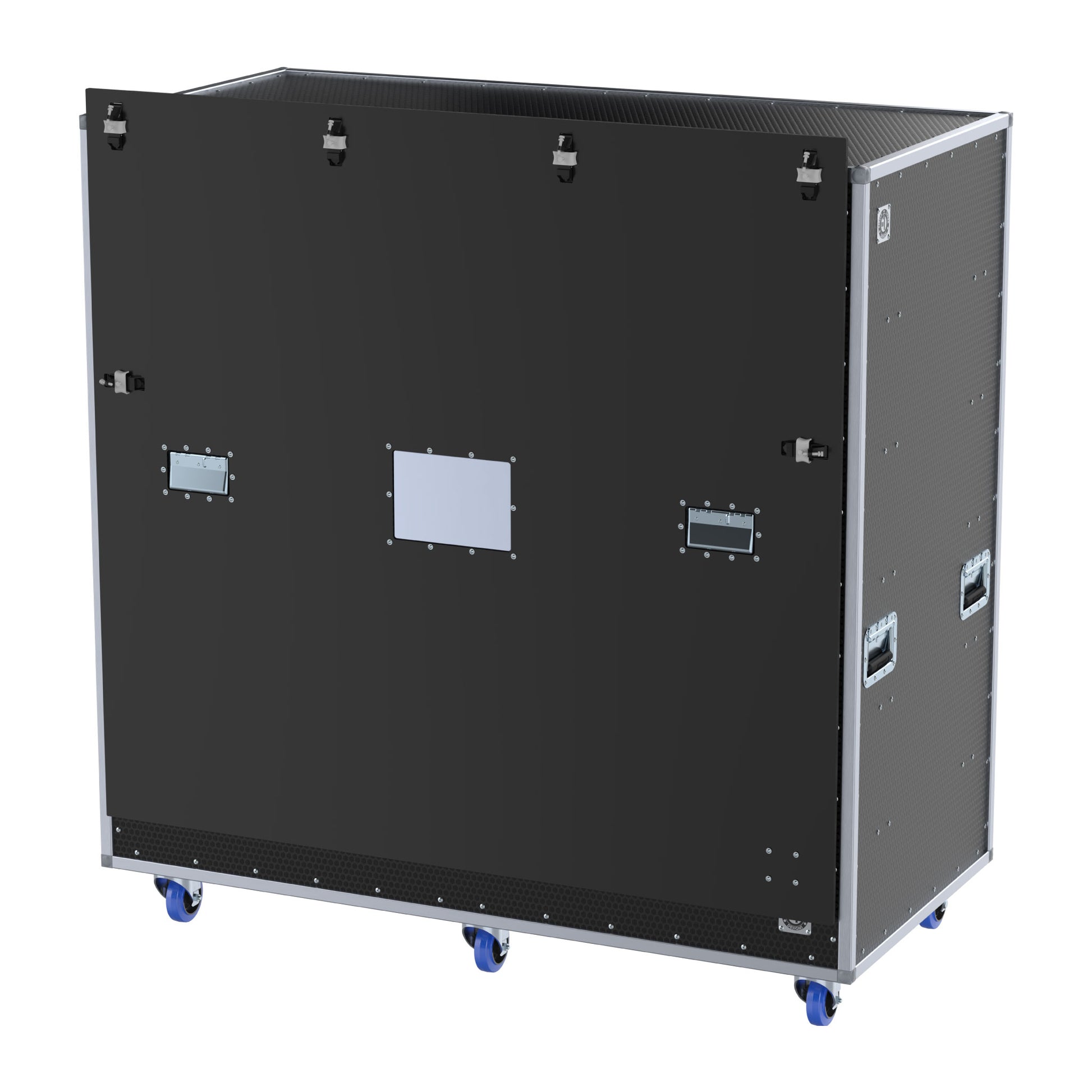

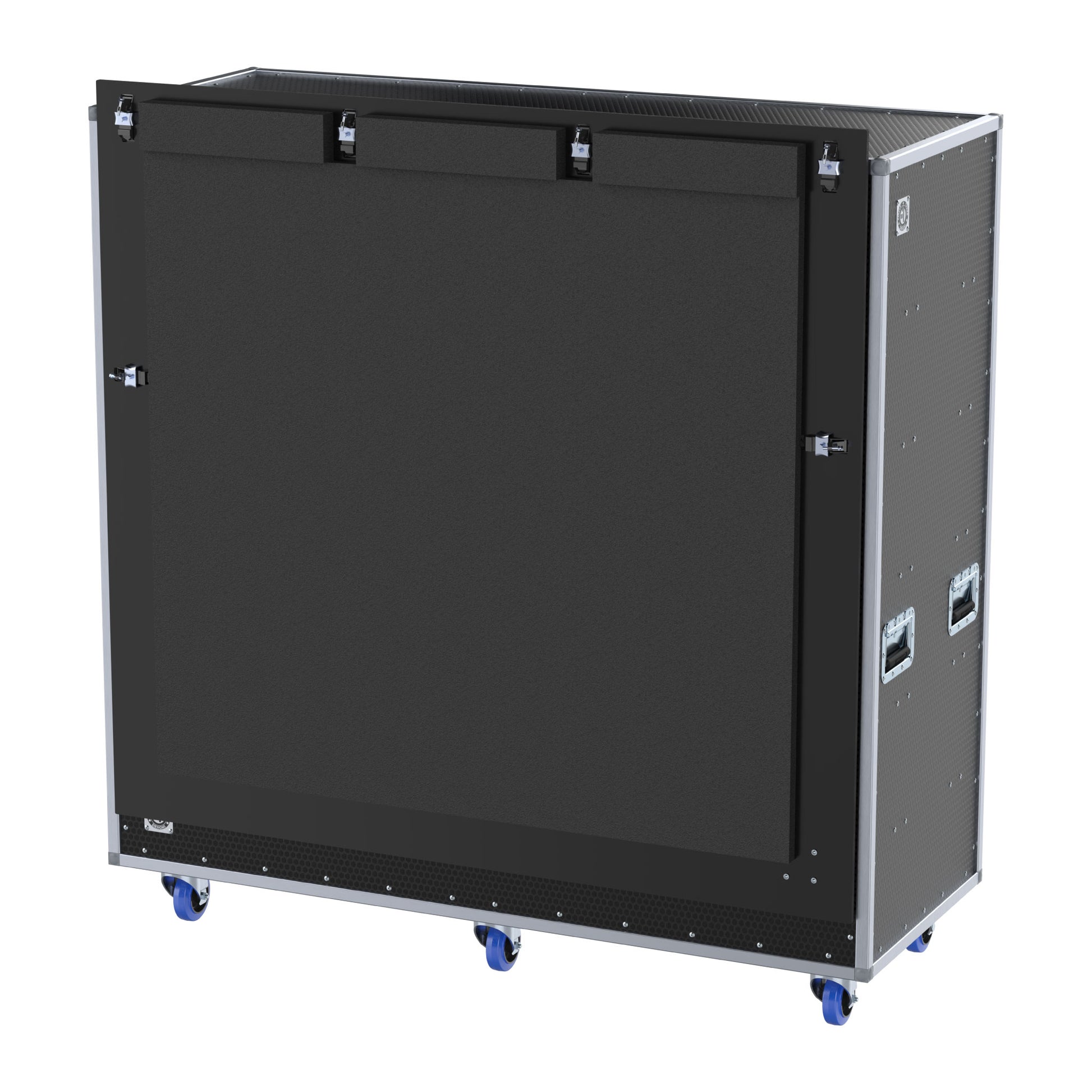

Lid: Slim lid that conveniently hangs off the back of the case when in use.6

Case Construction

Material: 3/8" Finnish Birch plywood with black phenolic resin. This 100% Finnish Birch plywood is made specifically to our specifications. The exterior phenolic resin has a “circle grip” pattern compared to the typical “haircell” pattern found on ABS. Unlike ABS, the phenolic resin will never delaminate.
Rivets: All of the rivets are backed by steel washers or with the aluminum extrusion.
Welding: The extrusions are welded at key joints in order to significantly strengthen the case.
CNC / CAD: Every case starts off life as a detailed CAD model before it hits the manufacturing floor. Panels are precisely machined using state of the art CNC technology affording us the ability to consistently provide uniformity and repeatability. Aluminum extrusion lengths are calculated using CAD modeling systems to ensure a proper fit and are cut using digital technology.

Additional Options

  • Removable boxes.
